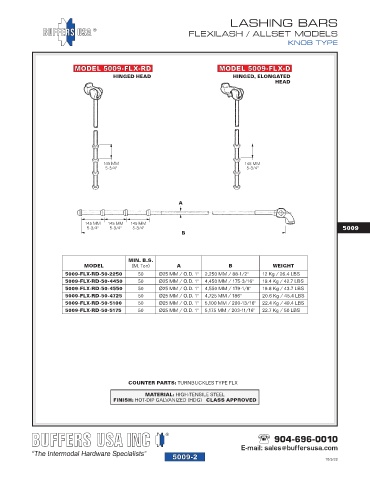

5009-02
LASHING BARS
FLEXILASH / ALLSET MODELS
KNOB TYPE
MODEL 5009-FLX-RD MODEL 5009-FLX-D
HINGED HEAD HINGED, ELONGATED
HEAD
145 MM 145 MM
5-3/4" 5-3/4"
A
145 MM 145 MM 145 MM
5-3/4" 5-3/4" 5-3/4" 5009
B
MIN. B.S.
MODEL (M. Ton) A B WEIGHT
5009-FLX-RD-50-2250 50 Ø25 MM / O.D. 1" 2,250 MM / 88-1/2" 12 Kg / 26.4 LBS
5009-FLX-RD-50-4450 50 Ø25 MM / O.D. 1" 4,450 MM / 175-3/16" 19.4 Kg / 42.7 LBS
5009-FLX-RD-50-4550 50 Ø25 MM / O.D. 1" 4,550 MM / 179-1/8" 19.8 Kg / 43.7 LBS
5009-FLX-RD-50-4725 50 Ø25 MM / O.D. 1" 4,725 MM / 186" 20.6 Kg / 45.4 LBS
5009-FLX-RD-50-5100 50 Ø25 MM / O.D. 1" 5,100 MM / 200-13/16" 22.4 Kg / 49.4 LBS
5009-FLX-RD-50-5175 50 Ø25 MM / O.D. 1" 5,175 MM / 203-11/16" 22.7 Kg / 50 LBS
COUNTER PARTS: TURNBUCKLES TYPE FLX
MATERIAL: HIGH-TENSILE STEEL
FINISH: HOT-DIP GALVANIZED (HDG) CLASS APPROVED
