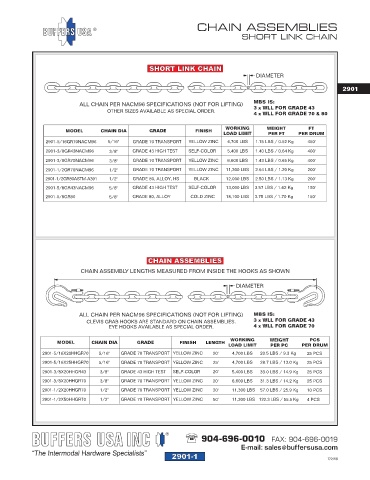

2901-01

CHAIN ASSEMBLIES
®
SHORT LINK CHAIN

SHORT LINK CHAIN
DIAMETER

2901

ALL CHAIN PER NACM96 SPECIFICATIONS (NOT FOR LIFTING) MBS IS:
OTHER SIZES AVAILABLE AS SPECIAL ORDER. 3 x WLL FOR GRADE 43
4 x WLL FOR GRADE 70 & 80

WORKING WEIGHT FT
MODEL CHAIN DIA GRADE FINISH
LOAD LIMIT PER FT PER DRUM
2901-5/16GR70NACM96 5/16" GRADE 70 TRANSPORT YELLOW ZINC 4,700 LBS 1.15 LBS / 0.52 Kg 450'
2901-3/8GR43NACM96 3/8" GRADE 43 HIGH TEST SELF-COLOR 5,400 LBS 1.40 LBS / 0.64 Kg 400'
2901-3/8GR70NACM96 3/8" GRADE 70 TRANSPORT YELLOW ZINC 6,600 LBS 1.43 LBS / 0.65 Kg 400'
2901-1/2GR70NACM96 1/2" GRADE 70 TRANSPORT YELLOW ZINC 11,300 LBS 2.64 LBS / 1.20 Kg 200'
2901-1/2GR80ASTM-A391 1/2" GRADE 80, ALLOY, HS BLACK 12,000 LBS 2.50 LBS / 1.13 Kg 200'
2901-5/8GR43NACM96 5/8" GRADE 43 HIGH TEST SELF-COLOR 13,000 LBS 3.57 LBS / 1.62 Kg 150'
2901-5/8GR80 5/8" GRADE 80, ALLOY COLD ZINC 18,100 LBS 3.75 LBS / 1.70 Kg 150'

CHAIN ASSEMBLIES
CHAIN ASSEMBLY LENGTHS MEASURED FROM INSIDE THE HOOKS AS SHOWN

DIAMETER

ALL CHAIN PER NACM96 SPECIFICATIONS (NOT FOR LIFTING) MBS IS:
CLEVIS GRAB HOOKS ARE STANDARD ON CHAIN ASSEMBLIES. 3 x WLL FOR GRADE 43
EYE HOOKS AVAILABLE AS SPECIAL ORDER. 4 x WLL FOR GRADE 70

WORKING WEIGHT PCS
MODEL CHAIN DIA GRADE FINISH LENGTH
LOAD LIMIT PER PC PER DRUM
2901-5/16X20HHGR70 5/16" GRADE 70 TRANSPORT YELLOW ZINC 20' 4,700 LBS 20.5 LBS / 9.3 Kg 25 PCS
2901-5/16X25HHGR70 5/16" GRADE 70 TRANSPORT YELLOW ZINC 25' 4,700 LBS 28.7 LBS / 13.0 Kg 25 PCS
2901-3/8X20HHGR43 3/8" GRADE 43 HIGH TEST SELF-COLOR 20' 5,400 LBS 33.0 LBS / 14.9 Kg 25 PCS
2901-3/8X20HHGR70 3/8" GRADE 70 TRANSPORT YELLOW ZINC 20' 6,600 LBS 31.3 LBS / 14.2 Kg 25 PCS
2901-1/2X20HHGR70 1/2" GRADE 70 TRANSPORT YELLOW ZINC 20' 11,300 LBS 57.0 LBS / 25.9 Kg 10 PCS
2901-1/2X50HHGR70 1/2" GRADE 70 TRANSPORT YELLOW ZINC 50' 11,300 LBS 122.3 LBS / 55.5 Kg 4 PCS

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
2901-1 7/2/18
