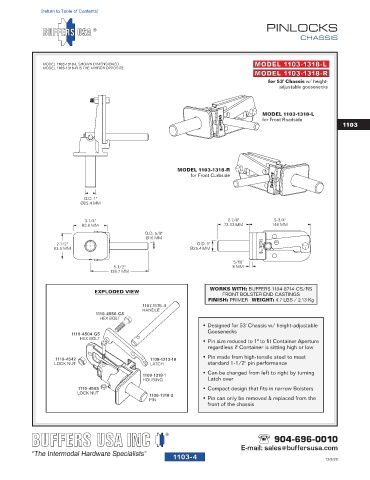

PINLOCKS

CHASSIS

MODEL 1103-1318-L SHOWN DIMENSIONED. MODEL 1103-1318-L
MODEL 1103-1318-R IS THE MIRROR OPPOSITE.
MODEL 1103-1318-R
for 53' Chassis w/ height-
adjustable goosenecks

MODEL 1103-1318-L
for Front Roadside
1103

MODEL 1103-1318-R
for Front Curbside

O.D. 1"
Ø25.4 MM

3-1/4" 2-7/8" 5-3/4"
82.6 MM 73.03 MM 146 MM
O.D. 5/8"
Ø16 MM
2-1/2" O.D. 1"
63.5 MM Ø25.4 MM

5/16"
5-1/2" 8 MM
139.7 MM

WORKS WITH: BUFFERS 1104-8714-CS/RS
EXPLODED VIEW
FRONT BOLSTER END CASTINGS
FINISH: PRIMER WEIGHT: 4.7 LBS / 2.13 Kg
1107-1175-4
HANDLE
1110-4556-G5
HEX BOLT . Designed for 53' Chassis w/ height-adjustable
1110-4504-G5 . Goosenecks
HEX BOLT Pin size reduced to 1" to fit Container Aperture
. regardless if Container is sitting high or low

1110-4542 1108-1213-18 Pin made from high-tensile steel to meet
LOCK NUT LATCH . standard 1-1/2" pin performance
1109-1318-1 Can be changed from left to right by turning
HOUSING . Latch over
1110-4505 Compact design that fits in narrow Bolsters
LOCK NUT .
1106-1318-2 Pin can only be removed & replaced from the
PIN
front of the chassis

904-696-0010
