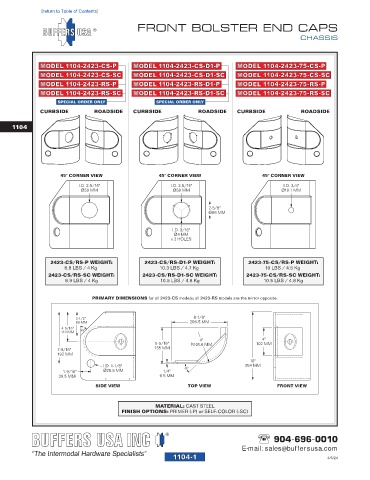

Page 128 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1104-01
[return to Table of Contents]
FRONT BOLSTER END CAPS

CHASSIS

MODEL 1104-2423-CS-P MODEL 1104-2423-CS-D1-P MODEL 1104-2423-75-CS-P
MODEL 1104-2423-CS-SC MODEL 1104-2423-CS-D1-SC MODEL 1104-2423-75-CS-SC
MODEL 1104-2423-RS-P MODEL 1104-2423-RS-D1-P MODEL 1104-2423-75-RS-P
MODEL 1104-2423-RS-SC MODEL 1104-2423-RS-D1-SC MODEL 1104-2423-75-RS-SC
SPECIAL ORDER ONLY SPECIAL ORDER ONLY
CURBSIDE ROADSIDE CURBSIDE ROADSIDE CURBSIDE ROADSIDE

1104

45° CORNER VIEW 45° CORNER VIEW 45° CORNER VIEW
I.D. 2-5/16" I.D. 2-5/16" I.D. 3/4"
Ø59 MM Ø59 MM Ø19.1 MM

2-5/8"
Ø66 MM

I.D. 3/16"
Ø4 MM
x 3 HOLES

2423-CS/RS-P WEIGHT: 2423-CS/RS-D1-P WEIGHT: 2423-75-CS/RS-P WEIGHT:
8.8 LBS / 4 Kg 10.3 LBS / 4.7 Kg 10 LBS / 4.5 Kg
2423-CS/RS-SC WEIGHT: 2423-CS/RS-D1-SC WEIGHT: 2423-75-CS/RS-SC WEIGHT:
8.9 LBS / 4 Kg 10.5 LBS / 4.8 Kg 10.5 LBS / 4.8 Kg

PRIMARY DIMENSIONS for all 2423-CS models; all 2423-RS models are the mirror opposite:

3-1/2" 8-1/8"
89 MM 206.5 MM
4-5/16"
110 MM 45°
4" 4"
5-5/16" R101.6 MM 102 MM
7-9/16" 135 MM
192 MM
10"
I.D. 1-1/8" 45° 254 MM
1-9/16" Ø28.5 MM 1/4"
39.5 MM 6.5 MM
SIDE VIEW TOP VIEW FRONT VIEW

MATERIAL: CAST STEEL
FINISH OPTIONS: PRIMER (-P) or SELF-COLOR (-SC)

904-696-0010
E-mail: sales@buffersusa.com
1104-1 4/5/24
