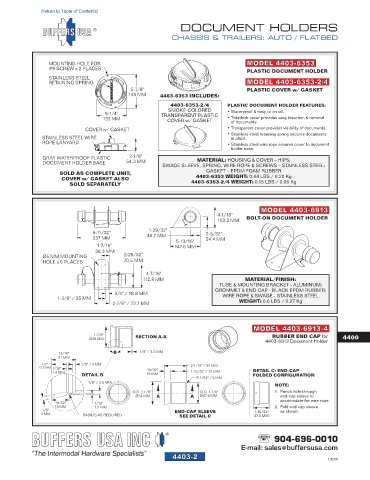

Page 315 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

4403-02
[return to Table of Contents]
DOCUMENT HOLDERS

CHASSIS & TRAILERS: AUTO / FLATBED

MOUNTING HOLE FOR MODEL 4403-6353
#8 SCREW x 2 PLACES PLASTIC DOCUMENT HOLDER
STAINLESS STEEL
RETAINING SPRING MODEL 4403-6353-2/4
5-7/8" PLASTIC COVER w/ GASKET
149 MM 4403-6353 INCLUDES:
4403-6353-2/4 PLASTIC DOCUMENT HOLDER FEATURES:
SMOKE-COLORED • Waterproof & easy to install.
5-1/4" TRANSPARENT PLASTIC
133 MM COVER w/ GASKET • Twistlock cover provides easy insertion & removal
of documents.
COVER w/ GASKET • Transparent cover provides visibility of documents.
• Stainless steel retaining spring secures documents
STAINLESS STEEL WIRE in place.
ROPE LANYARD • Stainless steel wire rope secures cover to document
holder base.
GRAY WATERPROOF PLASTIC 2-1/8" MATERIAL: HOUSING & COVER – HIPS;
DOCUMENT HOLDER BASE 54.3 MM
SWAGE SLEEVE, SPRING, WIRE ROPE & SCREWS – STAINLESS STEEL;
SOLD AS COMPLETE UNIT; GASKET – EPDM FOAM RUBBER
COVER w/ GASKET ALSO 4403-6353 WEIGHT: 0.44 LBS / 0.20 Kg
SOLD SEPARATELY 4403-6353-2/4 WEIGHT: 0.15 LBS / 0.06 Kg

MODEL 4403-6913
4-1/16"
103.2 MM BOLT-ON DOCUMENT HOLDER
1-29/32"
9-11/32" 2-5/32"
237 MM 48.7 MM 5-13/16" 54.4 MM
1-7/16" 147.6 MM
36.3 MM
Ø5 MM MOUNTING 2-25/32"
HOLE x 5 PLACES 70.5 MM

4-7/16"
112.8 MM MATERIAL/FINISH:
TUBE & MOUNTING BRACKET - ALUMINUM;
GROMMET & END CAP - BLACK EPDM RUBBER;
3/4" / 18.8 MM
1-3/8" / 35 MM WIRE ROPE & SWAGE - STAINLESS STEEL
2-7/8" / 72.7 MM WEIGHT: 0.6 LBS / 0.27 Kg

MODEL 4403-6913-4
1-7/8" RUBBER END CAP for
Ø48 MM SECTION A-A 4400
4403-6913 Document Holder
13/16" B 1/8" / 3.5 MM
21 MM
1/2" 1/8" / 3 MM 2-1/16" / 52 MM
12.5 MM 1/16" 19/32"
1.6 MM 1-15/32" / 37 MM DETAIL C: END-CAP
DETAIL B 15 MM FOLDED CONFIGURATION
R 1/64" / 2 MM
1/8" / 3.5 MM
NOTE:
O.D. 2-1/8" O.D. 1-7/8" 1. Punch hole through
Ø54 MM A A Ø47.6 MM end-cap sleeve to
accomodate for wire rope.
19/32" 1/16"
15 MM 1.5 MM 2. Fold end-cap sleeve
1/8" END-CAP SLEEVE 1-15/32" as shown.
3 MM RADIUS AS REQUIRED SEE DETAIL C 37.5 MM
904-696-0010
E-mail: sales@buffersusa.com
4403-2 1/8/19
