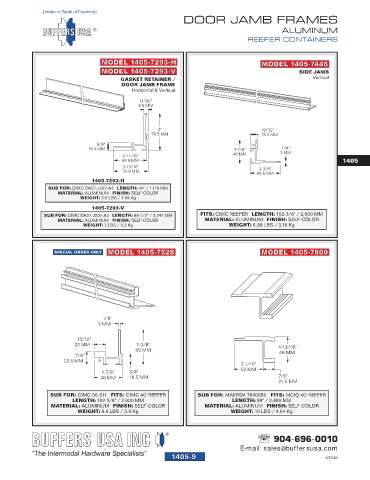

Page 203 - Buffers USA 2024 Container Hardware Catalog FlipBook

1405-09
[return to Table of Contents]
DOOR JAMB FRAMES
ALUMINUM
REEFER CONTAINERS

MODEL 1405-7293-H MODEL 1405-7446
MODEL 1405-7293-V SIDE JAMB
GASKET RETAINER / Vertical
DOOR JAMB FRAME
Horizontal & Vertical
11/32"
8.6 MM

3" 19/32"
76.5 MM 15.2 MM
5/8"
1/8"
15.4 MM 1-7/8" 3 MM
2-11/16" 48 MM
68.5 MM 1405
2-13/16" 2-3/8"
70.9 MM 60.5 MM
1405-7293-H
SUB FOR: CIMC DA27-J202-A2 LENGTH: 44" / 1,118 MM
MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 3.5 LBS / 1.59 Kg
1405-7293-V
SUB FOR: CIMC DA27-J201-A2 LENGTH: 88-1/2" / 2,247 MM FITS: CIMC REEFER LENGTH: 102-3/8" / 2,600 MM
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 7 LBS / 3.2 Kg WEIGHT: 6.98 LBS / 3.16 Kg

SPECIAL ORDER ONLY MODEL 1405-7528 MODEL 1405-7809

1/8"
3 MM

13/16"
20 MM 2-3/8"
60 MM 1-13/16"
7/8" 46 MM
22.5 MM
2-1/16"
1-7/8" 3/4" 52 MM
48 MM 18.5 MM 7/8"
21.5 MM

SUB FOR: CIMC 06-011 FITS: CIMC 40' REEFER SUB FOR: MAERSK 7840056 FITS: MCIQ 40' REEFER
LENGTH: 102-3/8" / 2,600 MM LENGTH: 98" / 2,489 MM
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 8.6 LBS / 3.9 Kg WEIGHT: 10 LBS / 4.54 Kg

904-696-0010
E-mail: sales@buffersusa.com
1405-9 4/30/24
