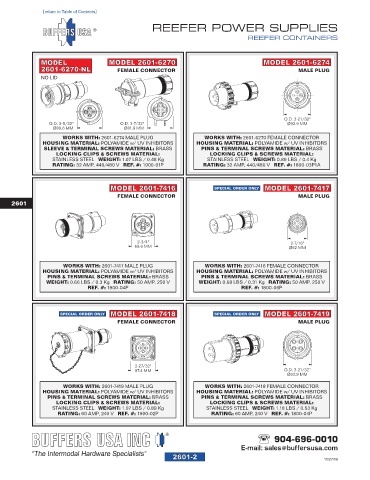

Page 230 - Buffers USA 2024 Container Hardware Catalog FlipBook

2601-02
[return to Table of Contents]
REEFER POWER SUPPLIES

REEFER CONTAINERS

MODEL MODEL 2601-6270 MODEL 2601-6274
2601-6270-NL FEMALE CONNECTOR MALE PLUG
NO LID

O.D. 3-21/32"
O.D. 3-5/32" O.D. 3-7/32" Ø92.9 MM
Ø80.6 MM Ø81.9 MM
WORKS WITH: 2601-6274 MALE PLUG WORKS WITH: 2601-6270 FEMALE CONNECTOR
HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS
SLEEVE & TERMINAL SCREWS MATERIAL: BRASS PINS & TERMINAL SCREWS MATERIAL: BRASS
LOCKING CLIPS & SCREWS MATERIAL: LOCKING CLIPS & SCREWS MATERIAL:
STAINLESS STEEL WEIGHT: 1.07 LBS / 0.48 Kg STAINLESS STEEL WEIGHT: 0.89 LBS / 0.4 Kg
RATING: 32 AMP, 440/480 V REF. #: 1900-01P RATING: 32 AMP, 440/480 V REF. #: 1800-03P1A

MODEL 2601-7416 SPECIAL ORDER ONLY MODEL 2601-7417
FEMALE CONNECTOR MALE PLUG
2601

2-3/4" 2-7/16"
69.6 MM Ø62 MM

WORKS WITH: 2601-7417 MALE PLUG WORKS WITH: 2601-7416 FEMALE CONNECTOR
HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS
PINS & TERMINAL SCREWS MATERIAL: BRASS PINS & TERMINAL SCREWS MATERIAL: BRASS
WEIGHT: 0.66 LBS / 0.3 Kg RATING: 50 AMP, 250 V WEIGHT: 0.68 LBS / 0.31 Kg RATING: 50 AMP, 250 V
REF. #: 1900-04P REF. #: 1800-06P

SPECIAL ORDER ONLY MODEL 2601-7418 SPECIAL ORDER ONLY MODEL 2601-7419
FEMALE CONNECTOR MALE PLUG

2-27/32"
97.4 MM O.D. 3-21/32"
Ø92.9 MM
WORKS WITH: 2601-7419 MALE PLUG WORKS WITH: 2601-7418 FEMALE CONNECTOR
HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS HOUSING MATERIAL: POLYAMIDE w/ UV INHIBITORS
PINS & TERMINAL SCREWS MATERIAL: BRASS PINS & TERMINAL SCREWS MATERIAL: BRASS
LOCKING CLIPS & SCREWS MATERIAL: LOCKING CLIPS & SCREWS MATERIAL:
STAINLESS STEEL WEIGHT: 1.97 LBS / 0.89 Kg STAINLESS STEEL WEIGHT: 1.18 LBS / 0.53 Kg
RATING: 60 AMP, 240 V REF. #: 1900-02P RATING: 60 AMP, 240 V REF. #: 1800-04P
