3401-01
[return to Table of Contents]

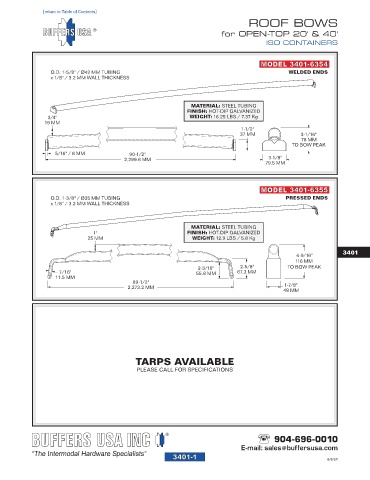

ROOF BOWS
for OPEN-TOP 20' & 40'
ISO CONTAINERS

MODEL 3401-6354
O.D. 1-5/8" / Ø42 MM TUBING WELDED ENDS
x 1/8" / 3.2 MM WALL THICKNESS

MATERIAL: STEEL TUBING
FINISH: HOT-DIP GALVANIZED
3/4" WEIGHT: 16.25 LBS / 7.37 Kg
19 MM
1-1/2"
37 MM 3-1/16"
78 MM
TO BOW PEAK
5/16" / 8 MM 90-1/2"
2,299.6 MM 3-1/8"
79.5 MM

MODEL 3401-6355
O.D. 1-3/8" / Ø35 MM TUBING PRESSED ENDS
x 1/8" / 3.2 MM WALL THICKNESS

MATERIAL: STEEL TUBING
1" FINISH: HOT-DIP GALVANIZED
25 MM WEIGHT: 12.9 LBS / 5.8 Kg

3401
4-9/16"
116 MM
2-3/16" 2-5/8" TO BOW PEAK
7/16" 55.8 MM 67.3 MM
11.5 MM
89-1/2"
2,273.2 MM 1-7/8"
48 MM

TARPS AVAILABLE

PLEASE CALL FOR SPECIFICATIONS

904-696-0010
E-mail: sales@buffersusa.com
3401-1 6/8/21
