5005-02
[return to Table of Contents]

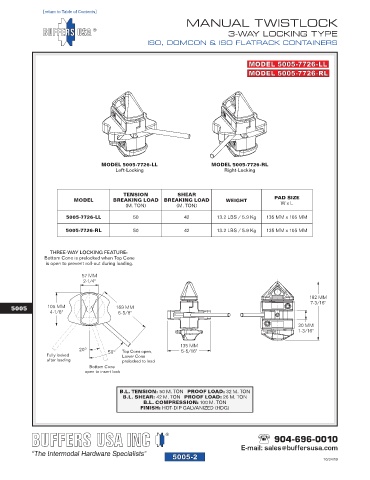

MANUAL TWISTLOCK
3-WAY LOCKING TYPE
ISO, DOMCON & ISO FLATRACK CONTAINERS

MODEL 5005-7726-LL
MODEL 5005-7726-RL

MODEL 5005-7726-LL MODEL 5005-7726-RL
Left-Locking Right-Locking

TENSION SHEAR
MODEL BREAKING LOAD BREAKING LOAD WEIGHT PAD SIZE
(M. TON) (M. TON) W x L
5005-7726-LL 50 42 13.2 LBS / 5.9 Kg 135 MM x 105 MM

5005-7726-RL 50 42 13.2 LBS / 5.9 Kg 135 MM x 105 MM

THREE-WAY LOCKING FEATURE:
Bottom Cone is prelocked when Top Cone
is open to prevent roll-out during loading.
57 MM
2-1/4"

182 MM
7-3/16"
5005 105 MM 169 MM
4-1/8" 6-5/8"
30 MM
1-3/16"

135 MM
20º 50º Top Cone open, 5-5/16"
Fully locked Lower Cone
after loading prelocked to load
Bottom Cone
open to insert lock

B.L. TENSION: 50 M. TON PROOF LOAD: 32 M. TON
B.L. SHEAR: 42 M. TON PROOF LOAD: 26 M. TON
B.L. COMPRESSION: 100 M. TON
FINISH: HOT-DIP GALVANIZED (HDG)

904-696-0010
E-mail: sales@buffersusa.com
5005-2 10/24/19
