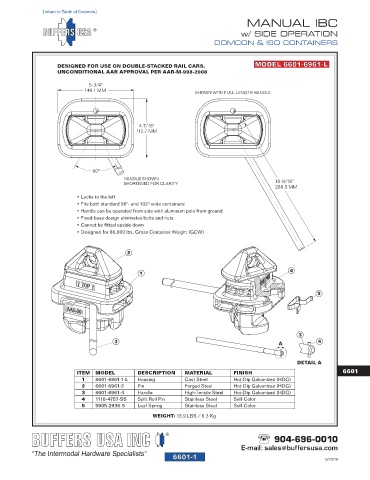

MANUAL IBC
w/ SIDE OPERATION
DOMCON & ISO CONTAINERS

DESIGNED FOR USE ON DOUBLE-STACKED RAIL CARS. MODEL 6601-6961-L
UNCONDITIONAL AAR APPROVAL PER AAR-M-998-2008

5-3/4"
146.1 MM SHOWN WITH FULL-LENGTH HANDLE

4-7/16"
112.7 MM

60º
HANDLE SHOWN 10-9/16"
SHORTENED FOR CLARITY
268.3 MM
• Locks to the left
• Fits both standard 96"- and 102"-wide containers
• Handle can be operated from side with aluminum pole from ground
• Fixed-base design eliminates bolts and nuts
• Cannot be fitted upside down
• Designed for 80,000 lbs. Gross Container Weight (GCW)

2

4
1

5

3
3 A 4

DETAIL A
ITEM MODEL DESCRIPTION MATERIAL FINISH 6601
1 6601-6961-1-L Housing Cast Steel Hot-Dip Galvanized (HDG)
2 6601-6961-2 Pin Forged Steel Hot-Dip Galvanized (HDG)
3 6601-6961-4 Handle High-Tensile Steel Hot-Dip Galvanized (HDG)
4 1110-4757-SS Split Roll Pin Stainless Steel Self-Color
5 5005-2936-5 Leaf Spring Stainless Steel Self-Color
WEIGHT: 13.9 LBS / 6.3 Kg
