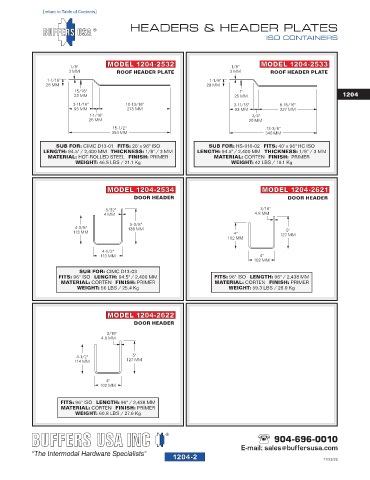

Page 37 - Buffers USA 2024 Container Hardware Catalog FlipBook

1204-02
[return to Table of Contents]
HEADERS & HEADER PLATES

ISO CONTAINERS

MODEL 1204-2532 MODEL 1204-2533
1/8" 1/8"
3 MM ROOF HEADER PLATE 3 MM ROOF HEADER PLATE
1-1/16" 1-1/8"
26 MM 28 MM
15/16" 1"
23 MM 25 MM 1204
3-11/16" 10-13/16" 3-11/16" 8-15/16"
93 MM 275 MM 93 MM 227 MM
1-1/16" 3/4"
26 MM 20 MM
15-1/2" 13-3/8"
394 MM 340 MM

SUB FOR: CIMC D13-01 FITS: 20' x 96" ISO SUB FOR: HS-016-02 FITS: 40' x 96" HC ISO
LENGTH: 94.5" / 2,400 MM THICKNESS: 1/8" / 3 MM LENGTH: 94.5" / 2,400 MM THICKNESS: 1/8" / 3 MM
MATERIAL: HOT-ROLLED STEEL FINISH: PRIMER MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 46.5 LBS / 21.1 Kg WEIGHT: 42 LBS / 19.1 Kg

MODEL 1204-2534 MODEL 1204-2621
DOOR HEADER DOOR HEADER

5/32" 3/16"
4 MM 4.8 MM
5-3/8"
4-3/8" 138 MM
5"
113 MM 4" 127 MM
102 MM
4-1/2"
113 MM 4"
102 MM
SUB FOR: CIMC D13-03
FITS: 96" ISO LENGTH: 94.5" / 2,400 MM FITS: 96" ISO LENGTH: 96" / 2,438 MM
MATERIAL: CORTEN FINISH: PRIMER MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 56 LBS / 25.4 Kg WEIGHT: 59.3 LBS / 26.9 Kg

MODEL 1204-2622
DOOR HEADER
3/16"
4.8 MM

4-1/2" 5"
114 MM 127 MM

4"
102 MM

FITS: 96" ISO LENGTH: 96" / 2,438 MM
MATERIAL: CORTEN FINISH: PRIMER
WEIGHT: 60.8 LBS / 27.6 Kg

904-696-0010
E-mail: sales@buffersusa.com
1204-2 11/23/22
