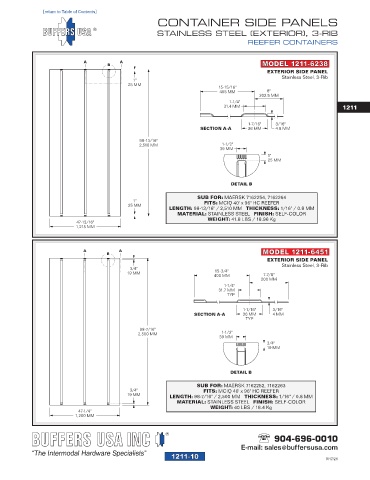

P. 95
1211-10
[return to Table of Contents]
CONTAINER SIDE PANELS
STAINLESS STEEL (EXTERIOR), 3-RIB
REEFER CONTAINERS
A A MODEL 1211-6238
B
EXTERIOR SIDE PANEL
Stainless Steel, 3-Rib
1"
25 MM
15-15/16"
405 MM 8"
202.5 MM
1-1/4"
31.4 MM 1211
1-7/16" 3/16"
SECTION A-A 36 MM 4.8 MM
98-13/16"
2,510 MM 1-1/2"
39 MM
1"
25 MM
DETAIL B
SUB FOR: MAERSK 7162254, 7162264
1" FITS: MCIQ 40' x 96" HC REEFER
25 MM
LENGTH: 98-13/16" / 2,510 MM THICKNESS: 1/16" / 0.8 MM
MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
WEIGHT: 41.8 LBS / 18.96 Kg
47-13/16"
1,215 MM
A A MODEL 1211-6451
B
EXTERIOR SIDE PANEL
Stainless Steel, 3-Rib
3/4"
19 MM 15-3/4" 7-7/8"
400 MM
200 MM
1-1/4"
31.7 MM
TYP
1-7/16" 3/16"
SECTION A-A 36 MM 4 MM
TYP
98-7/16"
2,500 MM 1-1/2"
39 MM
3/4"
19 MM
DETAIL B
SUB FOR: MAERSK 7162252, 7162263
3/4" FITS: MCIQ 40' x 96" HC REEFER
19 MM LENGTH: 98-7/16" / 2,500 MM THICKNESS: 1/16" / 0.8 MM
MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
WEIGHT: 40 LBS / 18.4 Kg
47-1/4"
1,200 MM
