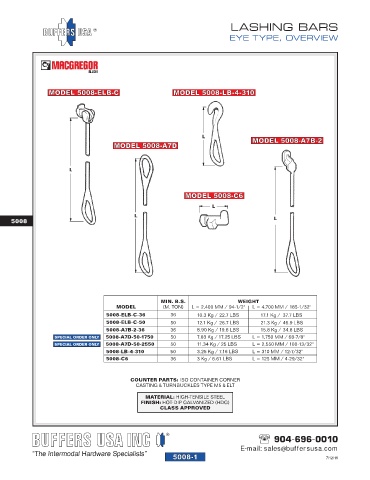

Page 158 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

5008-01

LASHING BARS

EYE TYPE, OVERVIEW

MODEL 5008-ELB-C MODEL 500 8-LB-4-310

L MODEL 5008-A7B-2
MODEL 5008-A7D

L

MODEL 5008-C6

L
L
5008 L

MIN. B.S. WEIGHT
MODEL (M. TON) L = 2,400 MM / 94-1/2" L = 4,700 MM / 185-1/32"
5008-ELB-C-36 36 10.3 Kg / 22.7 LBS 17.1 Kg / 37.7 LBS
5008-ELB-C-50 50 12.1 Kg / 26.7 LBS 21.3 Kg / 46.9 LBS
5008-A7B-2-36 36 8.90 Kg / 19.6 LBS 15.8 Kg / 34.8 LBS
SPECIAL ORDER ONLY 5008-A7D-50-1750 50 7.83 Kg / 17.25 LBS L = 1,750 MM / 68-7/8"
SPECIAL ORDER ONLY 5008-A7D-50-2550 50 11.34 Kg / 25 LBS L = 2,550 MM / 100-13/32"
5008-LB-4-310 50 3.25 Kg / 7.16 LBS L = 310 MM / 12-7/32"
5008-C6 36 3 Kg / 6.61 LBS L = 125 MM / 4-29/32"

COUNTER PARTS: ISO CONTAINER CORNER
CASTING & TURNBUCKLES TYPE M5 & ELT
MATERIAL: HIGH-TENSILE STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
CLASS APPROVED

904-696-0010
E-mail: sales@buffersusa.com
5008-1 7/12/18
