5004-01

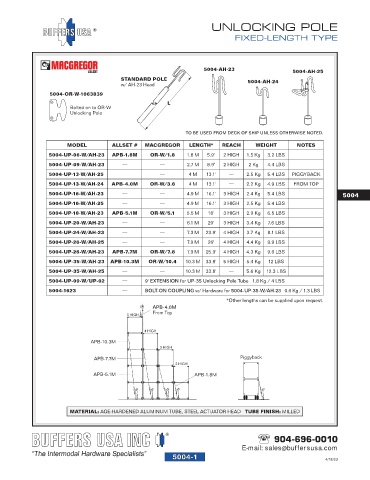

UNLOCKING POLE

FIXED-LENGTH TYPE

5004-AH-23 5004-AH-25
STANDARD POLE 5004-AH-24
w/ AH-23 Head
5004-OR-W-1063839
L
Bolted on to OR-W
Unlocking Pole

TO BE USED FROM DECK OF SHIP UNLESS OTHERWISE NOTED.
MODEL ALLSET # MACGREGOR LENGTH* REACH WEIGHT NOTES
5004-UP-06-W/AH-23 APB-1.8M OR-W/1.8 1.8 M 5.9' 2 HIGH 1.5 Kg 3.2 LBS
5004-UP-09-W/AH-23 — — 2.7 M 8.9' 2 HIGH 2 Kg 4.4 LBS
5004-UP-13-W/AH-25 — — 4 M 13.1' — 2.5 Kg 5.4 LBS PIGGYBACK
5004-UP-13-W/AH-24 APB-4.0M OR-W/3.6 4 M 13.1' — 2.2 Kg 4.9 LBS FROM TOP
5004-UP-16-W/AH-23 — — 4.9 M 16.1' 3 HIGH 2.4 Kg 5.4 LBS 5004
5004-UP-16-W/AH-25 — — 4.9 M 16.1' 3 HIGH 2.5 Kg 5.4 LBS
5004-UP-18-W/AH-23 APB-5.1M OR-W/5.1 5.5 M 18' 3 HIGH 2.9 Kg 6.5 LBS
5004-UP-20-W/AH-23 — — 6.1 M 20' 3 HIGH 3.4 Kg 7.6 LBS
5004-UP-24-W/AH-23 — — 7.3 M 23.9' 4 HIGH 3.7 Kg 8.1 LBS
5004-UP-26-W/AH-25 — — 7.9 M 26' 4 HIGH 4.4 Kg 9.9 LBS
5004-UP-26-W/AH-23 APB-7.7M OR-W/7.8 7.9 M 25.9' 4 HIGH 4.3 Kg 9.6 LBS
5004-UP-35-W/AH-23 APB-10.3M OR-W/10.4 10.3 M 33.8' 5 HIGH 5.4 Kg 12 LBS
5004-UP-35-W/AH-25 — — 10.3 M 33.8' — 5.6 Kg 12.3 LBS
5004-UP-09-W/UP-02 — 9' EXTENSION for UP-35 Unlocking Pole Tube 1.8 Kg / 4 LBS
5004-1623 — BOLT-ON COUPLING w/ Hardware for 5004-UP-35-W/AH-23 0.6 Kg / 1.3 LBS
*Other lengths can be supplied upon request.
APB-4.0M
From Top
5 HIGH

4 HIGH
APB-10.3M
3 HIGH
APB-7.7M Piggyback
2 HIGH
APB-5.1M APB-1.8M

MATERIAL: AGE-HARDENED ALUMINUM TUBE, STEEL ACTUATOR HEAD TUBE FINISH: MILLED

904-696-0010
E-mail: sales@buffersusa.com
5004-1 4/18/23
