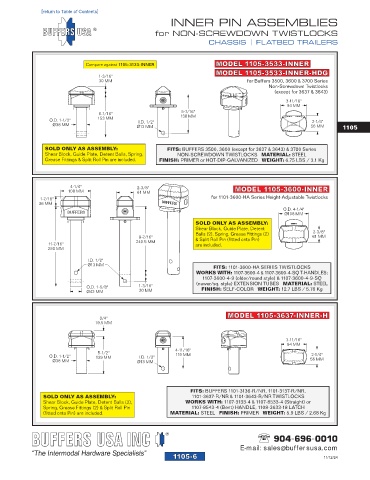

INNER PIN ASSEMBLIES

for NON-SCREWDOWN TWISTLOCKS
CHASSIS | FLATBED TRAILERS

Compare against 1105-3133-INNER MODEL 1105-3533-INNER
MODEL 1105-3533-INNER-HDG
1-3/16"
30 MM for Buffers 3500, 3600 & 3700 Series
Non-Screwdown Twistlocks
(except for 3637 & 3643)
3-11/16"
94 MM
5-7/16"
6-1/16" 138 MM
O.D. 1-1/2" 153 MM I.D. 1/2" 2-1/4"
Ø38 MM Ø13 MM 56 MM 1105

SOLD ONLY AS ASSEMBLY: FITS: BUFFERS 3500, 3600 (except for 3637 & 3643) & 3700 Series
Shear Block, Guide Plate, Detent Balls, Spring, NON-SCREWDOWN TWISTLOCKS MATERIAL: STEEL
Grease Fittings & Split Roll Pin are included. FINISH: PRIMER or HOT-DIP-GALVANIZED WEIGHT: 6.75 LBS / 3.1 Kg

4-1/4" 2-3/8" MODEL 1105-3600-INNER
108 MM 61 MM
1-7/16" for 1101-3600-HA Series Height-Adjustable Twistlocks
36 MM
O.D. 4-1/4"
Ø108 MM
SOLD ONLY AS ASSEMBLY:
Shear Block, Guide Plate, Detent
Balls (2), Spring, Grease Fittings (2) 2-3/8"
9-7/16" & Split Roll Pin (fitted onto Pin) 61 MM
240.5 MM
11-7/16" are included.
290 MM
I.D. 1/2"
Ø13 MM
FITS: 1101-3600-HA SERIES TWISTLOCKS
WORKS WITH: 1107-3600-4 & 1107-3600-4-SQ T-HANDLES;
1107-3600-4-9 (older/round style) & 1107-3600-4-9-SQ
O.D. 1-5/8" 1-3/16" (newer/sq. style) EXTENSION TUBES MATERIAL: STEEL
FINISH: SELF-COLOR WEIGHT: 12.7 LBS / 5.76 Kg
Ø42 MM 30 MM

MODEL 1105-3637-INNER-H
3/4"
19.5 MM

3-11/16"
94 MM
4-11/16"
5-1/2"
O.D. 1-1/2" 139 MM I.D. 1/2" 119 MM 2-1/4"
Ø38 MM Ø13 MM 56 MM

FITS: BUFFERS 1101-3136-R/NR, 1101-3137-R/NR,
SOLD ONLY AS ASSEMBLY: 1101-3637-R/NR & 1101-3643-R/NR TWISTLOCKS
Shear Block, Guide Plate, Detent Balls (2), WORKS WITH: 1107-3133-4 & 1107-8533-4 (Straight) or
Spring, Grease Fittings (2) & Split Roll Pin 1107-8543-4 (Bent) HANDLE, 1108-3633-18 LATCH
(fitted onto Pin) are included. MATERIAL: STEEL FINISH: PRIMER WEIGHT: 5.9 LBS / 2.68 Kg
