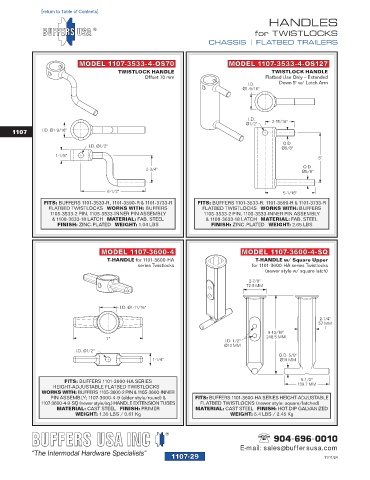

Page 218 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1107-29
[return to Table of Contents]
HANDLES

for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1107-3533-4-OS70 MODEL 1107-3533-4-OS127
TWISTLOCK HANDLE TWISTLOCK HANDLE
Offset 70 mm Flatbed Use Only – Extended
I.D. Down 5" w/ Latch Arm
Ø1-9/16"

I.D.
Ø1/2" 2-15/16"
1107 I.D. Ø1-9/16"

O.D.
I.D. Ø1/2" Ø5/8"
1-1/8"
5"
O.D.
2-3/4" Ø5/8"

6-1/2" 5-1/16"
FITS: BUFFERS 1101-3533-R, 1101-3590-R & 1101-3733-R FITS: BUFFERS 1101-3533-R, 1101-3590-R & 1101-3733-R
FLATBED TWISTLOCKS WORKS WITH: BUFFERS FLATBED TWISTLOCKS WORKS WITH: BUFFERS
1105-3533-2 PIN, 1105-3533-INNER PIN ASSEMBLY 1105-3533-2 PIN, 1105-3533-INNER PIN ASSEMBLY
& 1108-3633-18 LATCH MATERIAL: FAB. STEEL & 1108-3633-18 LATCH MATERIAL: FAB. STEEL
FINISH: ZINC-PLATED WEIGHT: 1.04 LBS FINISH: ZINC-PLATED WEIGHT: 2.65 LBS

MODEL 1107-3600-4 MODEL 1107-3600-4-SQ
T-HANDLE for 1101-3600-HA T-HANDLE w/ Square Upper
series Twistlocks for 1101-3600-HA series Twistlocks
(newer style w/ square latch)
2-7/8"
72.5 MM

I.D. Ø1-11/16"
2-1/4"
57 MM
9-13/16"
7" 248.5 MM
I.D. 1/2"
Ø13 MM
I.D. Ø1/2"
O.D. 5/8"
1-1/4" Ø19 MM

FITS: BUFFERS 1101-3600-HA SERIES 5-1/2"
HEIGHT-ADJUSTABLE FLATBED TWISTLOCKS 139.7 MM
WORKS WITH: BUFFERS 1105-3600-2 PIN & 1105-3600-INNER
PIN ASSEMBLY; 1107-3600-4-9 (older style/round) & FITS: BUFFERS 1101-3600-HA SERIES HEIGHT-ADJUSTABLE
1107-3600-4-9-SQ (newer style/sq.) HANDLE EXTENSION TUBES FLATBED TWISTLOCKS (newer style: square/latched)
MATERIAL: CAST STEEL FINISH: PRIMER MATERIAL: CAST STEEL FINISH: HOT-DIP GALVANIZED
WEIGHT: 1.35 LBS / 0.61 Kg WEIGHT: 5.4 LBS / 2.45 Kg

904-696-0010

E-mail: sales@buffersusa.com
1107-29 11/11/24
