6101-01
[return to Table of Contents]

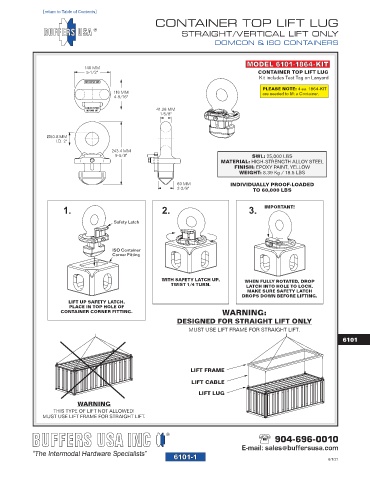

CONTAINER TOP LIFT LUG
STRAIGHT/VERTICAL LIFT ONLY
DOMCON & ISO CONTAINERS

MODEL 6101-1864-KIT
140 MM
5-1/2" CONTAINER TOP LIFT LUG
Kit includes Test Tag on Lanyard
SWL 25,000 LBS
PLEASE NOTE: 4 ea. 1864-KIT
116 MM are needed to lift a Container.
4-9/16"
LATCH DOWN 41.28 MM
BEFORE LIFT
1-5/8"

Ø50.8 MM
I.D. 2"
243.4 MM
9-5/8" SWL: 25,000 LBS
MATERIAL: HIGH-STRENGTH ALLOY STEEL
FINISH: EPOXY PAINT, YELLOW
WEIGHT: 8.39 Kg / 18.5 LBS
60 MM INDIVIDUALLY PROOF-LOADED
2-3/8" TO 60,000 LBS

1. 2. 3. IMPORTANT!

Safety Latch

ISO Container
Corner Fitting

WITH SAFETY LATCH UP, WHEN FULLY ROTATED, DROP
TWIST 1/4 TURN. LATCH INTO HOLE TO LOCK.
MAKE SURE SAFETY LATCH
DROPS DOWN BEFORE LIFTING.
LIFT UP SAFETY LATCH,
PLACE IN TOP HOLE OF
CONTAINER CORNER FITTING. WARNING:
DESIGNED FOR STRAIGHT LIFT ONLY
MUST USE LIFT FRAME FOR STRAIGHT LIFT.
6101

LIFT FRAME
LIFT CABLE
LIFT LUG
WARNING
THIS TYPE OF LIFT NOT ALLOWED!
MUST USE LIFT FRAME FOR STRAIGHT LIFT.

904-696-0010
E-mail: sales@buffersusa.com
6101-1 6/1/21
