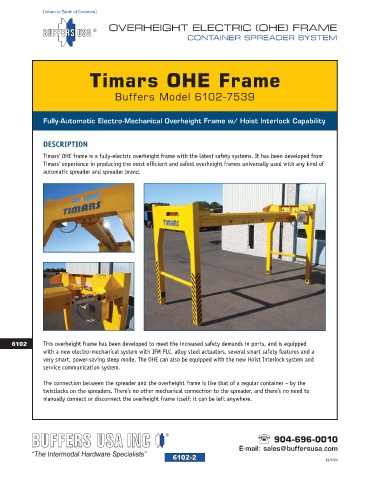

OVERHEIGHT ELECTRIC (OHE) FRAME
®
CONTAINER SPREADER SYSTEM
Timars OHE Frame
Timars OHE Frame
Buffers Model 6102-7539
Buffers Model 6102-7539
Fully-Automatic Electro-Mechanical Overheight Frame w/ Hoist Interlock Capability
DESCRIPTION
Timars’ OHE frame is a fully-electric overheight frame with the latest safety systems. It has been developed from
Timars’ experience in producing the most efficient and safest overheight frames universally used with any kind of
automatic spreader and spreader brand.
6102 This overheight frame has been developed to meet the increased safety demands in ports, and is equipped
with a new electro-mechanical system with IFM PLC, alloy steel actuators, several smart safety features and a
very smart, power-saving sleep mode. The OHE can also be equipped with the new Hoist Interlock system and
service communication system.
The connection between the spreader and the overheight frame is like that of a regular container – by the
twistlocks on the spreaders. There’s no other mechanical connection to the spreader, and there’s no need to
manually connect or disconnect the overheight frame itself; it can be left anywhere.
