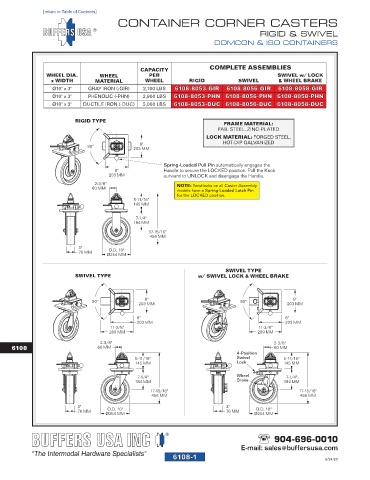

Page 312 - Buffers USA 2024 Container Hardware Catalog FlipBook

6108-01
[return to Table of Contents]
CONTAINER CORNER CASTERS
RIGID & SWIVEL
DOMCON & ISO CONTAINERS

CAPACITY COMPLETE ASSEMBLIES
WHEEL DIA. WHEEL PER SWIVEL w/ LOCK
x WIDTH MATERIAL WHEEL RIGID SWIVEL & WHEEL BRAKE
Ø10" x 3" GRAY IRON (-GIR) 2,700 LBS 6108-8053-GIR 6108-8056-GIR 6108-8058-GIR
Ø10" x 3" PHENOLIC (-PHN) 2,900 LBS 6108-8053-PHN 6108-8056-PHN 6108-8058-PHN
Ø10" x 3" DUCTILE IRON (-DUC) 5,000 LBS 6108-8053-DUC 6108-8056-DUC 6108-8058-DUC

RIGID TYPE
FRAME MATERIAL:
FAB. STEEL, ZINC-PLATED
LOCK MATERIAL: FORGED STEEL,
8" HOT-DIP GALVANIZED
90° 203 MM

Spring-Loaded Pull Pin automatically engages the
8" Handle to secure the LOCKED position. Pull the Knob
203 MM outward to UNLOCK and disengage the Handle.
2-3/8"
60 MM NOTE: Twistlocks on all Caster Assembly
models have a Spring-Loaded Latch Pin
for the LOCKED position.
5-11/16"
145 MM
7-1/4"
184 MM
17-15/16"
456 MM
3"
76 MM O.D. 10"
Ø254 MM
SWIVEL TYPE
SWIVEL TYPE w/ SWIVEL LOCK & WHEEL BRAKE

8" 8"
90° 90°
203 MM 203 MM
8" 8"
203 MM 203 MM
11-3/8" 11-3/8"
289 MM 289 MM
2-3/8" 2-3/8"
6108 60 MM 60 MM
4-Position
5-11/16" Swivel 5-11/16"
145 MM Lock 145 MM

7-1/4" Wheel 7-1/4"
184 MM Brake 184 MM
17-15/16" 17-15/16"
456 MM 456 MM
3" O.D. 10" 3" O.D. 10"
76 MM 76 MM
Ø254 MM Ø254 MM

904-696-0010
E-mail: sales@buffersusa.com
6108-1 5/24/21
