6201-01
[return to Table of Contents]

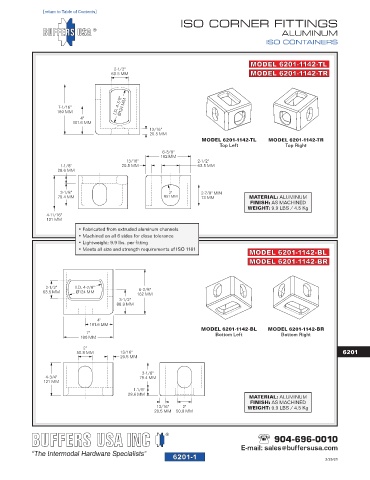

ISO CORNER FITTINGS
ALUMINUM
ISO CONTAINERS

MODEL 6201-1142-TL
2-1/2"
63.5 MM MODEL 6201-1142-TR

7-1/16" I.D. 4-7/8" Ø124 MM
180 MM
4"
101.6 MM
13/16"
20.5 MM
MODEL 6201-1142-TL MODEL 6201-1142-TR
Top Left Top Right
6-3/8"
162 MM
13/16" 2-1/2"
1-1/8" 20.5 MM 63.5 MM
28.6 MM

3-1/8" 2" 2-7/8" MIN
79.4 MM R51 MM 73 MM MATERIAL: ALUMINUM
FINISH: AS MACHINED
WEIGHT: 9.9 LBS / 4.5 Kg
4-11/16"
121 MM
• Fabricated from extruded aluminum channels
• Machined on all 6 sides for close tolerance
• Lightweight: 9.9 lbs. per fitting
• Meets all size and strength requirements of ISO 1161 MODEL 6201-1142-BL
MODEL 6201-1142-BR

2-1/2" I.D. 4-7/8"
63.5 MM Ø124 MM 6-3/8"
162 MM
3-1/2"
88.9 MM

4"
101.6 MM
MODEL 6201-1142-BL MODEL 6201-1142-BR
7" Bottom Left Bottom Right
180 MM
2"
50.8 MM 13/16" 6201
20.5 MM

3-1/8"
4-3/4" 79.4 MM
121 MM
1-1/8"
28.6 MM
MATERIAL: ALUMINUM
FINISH: AS MACHINED
13/16" 2" WEIGHT: 9.9 LBS / 4.5 Kg
20.5 MM 50.8 MM

904-696-0010
E-mail: sales@buffersusa.com
6201-1 2/25/21
