6201-02
[return to Table of Contents]

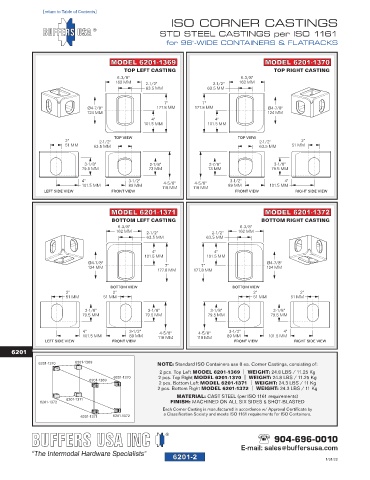

ISO CORNER CASTINGS
STD STEEL CASTINGS per ISO 1161
for 96"-WIDE CONTAINERS & FLATRACKS

MODEL 6201-1369 MODEL 6201-1370
TOP LEFT CASTING TOP RIGHT CASTING
6-3/8" 6-3/8"
162 MM 2-1/2" 2-1/2" 162 MM
63.5 MM 63.5 MM

7" 7"
Ø4-7/8" 177.8 MM 177.8 MM Ø4-7/8"
124 MM 124 MM
4" 4"
101.5 MM 101.5 MM

TOP VIEW TOP VIEW
2" 2-1/2" 2-1/2" 2"
51 MM 63.5 MM 63.5 MM 51 MM

3-1/8" 2-7/8" 2-7/8" 3-1/8"
79.5 MM 73 MM 73 MM 79.5 MM

4" 3-1/2" 4-5/8" 4-5/8" 3-1/2" 4"
101.5 MM 89 MM 118 MM 118 MM 89 MM 101.5 MM
LEFT SIDE VIEW FRONT VIEW FRONT VIEW RIGHT SIDE VIEW

MODEL 6201-1371 MODEL 6201-1372
BOTTOM LEFT CASTING BOTTOM RIGHT CASTING
6-3/8" 6-3/8"
162 MM 2-1/2" 2-1/2" 162 MM
63.5 MM 63.5 MM

4" 4"
101.5 MM 101.5 MM
Ø4-7/8" Ø4-7/8"
124 MM 7" 7" 124 MM
177.8 MM 177.8 MM

BOTTOM VIEW BOTTOM VIEW
2" 2" 2" 2"
51 MM 51 MM 51 MM 51 MM

3-1/8" 3-1/8" 3-1/8" 3-1/8"
79.5 MM 79.5 MM 79.5 MM 79.5 MM

4" 3-1/2" 4-5/8" 4-5/8" 3-1/2" 4"
101.5 MM 89 MM 118 MM 118 MM 89 MM 101.5 MM
LEFT SIDE VIEW FRONT VIEW FRONT VIEW RIGHT SIDE VIEW
6201
6201-1370 6201-1369 NOTE: Standard ISO Containers use 8 ea. Corner Castings, consisting of:
2 pcs. Top Left MODEL 6201-1369 | WEIGHT: 24.8 LBS / 11.25 Kg
6201-1370 2 pcs. Top Right MODEL 6201-1370 | WEIGHT: 24.8 LBS / 11.25 Kg
6201-1369
2 pcs. Bottom Left MODEL 6201-1371 | WEIGHT: 24.3 LBS / 11 Kg
2 pcs. Bottom Right MODEL 6201-1372 | WEIGHT: 24.3 LBS / 11 Kg
MATERIAL: CAST STEEL (per ISO 1161 requirements)
6201-1371
6201-1372 FINISH: MACHINED ON ALL SIX SIDES & SHOT-BLASTED
Each Corner Casting is manufactured in accordance w/ Approval Certificate by
6201-1371 6201-1372 a Classification Society and meets ISO 1161 requirements for ISO Containers.
