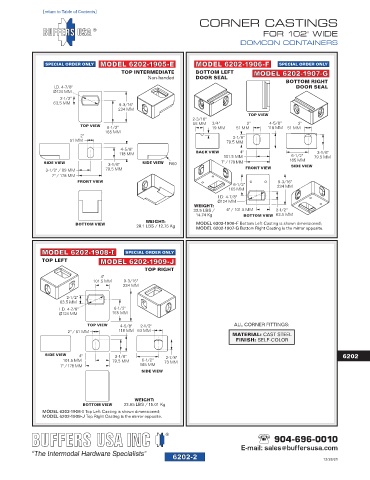

Page 321 - Buffers USA 2024 Container Hardware Catalog FlipBook

6202-02
[return to Table of Contents]
CORNER CASTINGS
FOR 102" WIDE
DOMCON CONTAINERS

SPECIAL ORDER ONLY MODEL 6202-1905-E MODEL 6202-1906-F SPECIAL ORDER ONLY
TOP INTERMEDIATE BOTTOM LEFT MODEL 6202-1907-G
Non-handed DOOR SEAL
BOTTOM RIGHT
I.D. 4-7/8" DOOR SEAL
Ø124 MM
2-1/2"
63.5 MM 9-3/16"
234 MM
TOP VIEW
2-3/16"
55 MM 3/4" 2" 4-5/8" 2"
TOP VIEW 6-1/2" 19 MM 51 MM 118 MM 51 MM
165 MM
2" 3-1/8"
51 MM 79.5 MM
4-5/8"
118 MM BACK VIEW 4" 3-1/8"
101.5 MM 6-1/2" 79.5 MM
SIDE VIEW 3-1/8" SIDE VIEW R60 7" / 178 MM 165 MM
SIDE VIEW
3-1/2" / 89 MM 79.5 MM FRONT VIEW
7" / 178 MM
FRONT VIEW 9-3/16"
6-1/2" 234 MM
165 MM
I.D. 4-7/8"
Ø124 MM
WEIGHT:
32.5 LBS / 4" / 101.5 MM 2-1/2"
14.74 Kg BOTTOM VIEW 63.5 MM
WEIGHT:
BOTTOM VIEW 28.1 LBS / 12.75 Kg MODEL 6202-1906-F Bottom Left Casting is shown dimensioned;
MODEL 6202-1907-G Bottom Right Casting is the mirror opposite.

MODEL 6202-1908-I SPECIAL ORDER ONLY
TOP LEFT MODEL 6202-1909-J
TOP RIGHT
4"
101.5 MM 9-3/16"
234 MM

2-1/2"
63.5 MM
I.D. 4-7/8" 6-1/2"
Ø124 MM 165 MM

TOP VIEW 4-5/8" 2-1/2" ALL CORNER FITTINGS:
2" / 51 MM 118 MM 63 MM
MATERIAL: CAST STEEL
FINISH: SELF-COLOR

SIDE VIEW 4" 3-1/8" 2-7/8" 6202
101.5 MM 79.5 MM 6-1/2" 73 MM
7" / 178 MM 165 MM
SIDE VIEW

WEIGHT:
BOTTOM VIEW 33.05 LBS / 15.01 Kg
MODEL 6202-1908-I Top Left Casting is shown dimensioned;
MODEL 6202-1909-J Top Right Casting is the mirror opposite.

904-696-0010
E-mail: sales@buffersusa.com
6202-2 12/28/21
