6108-02
[return to Table of Contents]

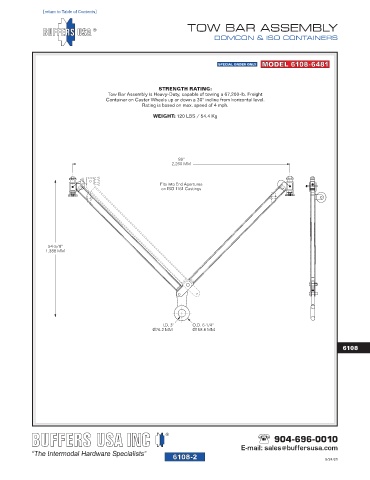

TOW BAR ASSEMBLY

DOMCON & ISO CONTAINERS

MODEL 6108-6481
SPECIAL ORDER ONLY

STRENGTH RATING:
Tow Bar Assembly is Heavy-Duty, capable of towing a 67,200-lb. Freight
Container on Caster Wheels up or down a 30° incline from horizontal level.
Rating is based on max. speed of 4 mph.
WEIGHT: 120 LBS / 54.4 Kg

89"
2,260 MM

Fits into End Apertures
on ISO 1161 Castings

54-5/8"
1,388 MM

I.D. 3" O.D. 6-1/4"
Ø76.2 MM Ø158.8 MM

6108

904-696-0010
E-mail: sales@buffersusa.com
6108-2 5/24/21
