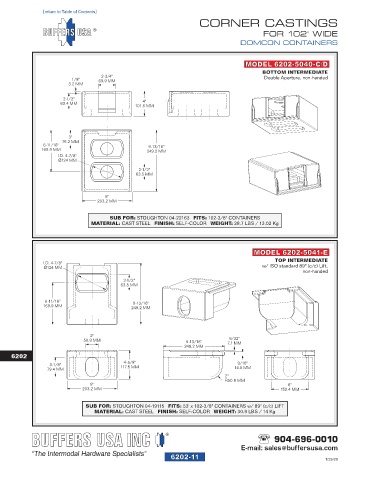

Page 330 - Buffers USA 2024 Container Hardware Catalog FlipBook

6202-11
[return to Table of Contents]
CORNER CASTINGS
FOR 102" WIDE
DOMCON CONTAINERS

MODEL 6202-5040-C/D
BOTTOM INTERMEDIATE
2-3/4" Double Aperture, non-handed
1/8" 69.9 MM
3.2 MM

2-1/2"
63.4 MM 4"
101.6 MM

3"
76.2 MM
6-11/16" 9-13/16"
169.9 MM 249.2 MM
I.D. 4-7/8"
Ø124 MM
2-1/2"
63.5 MM

8"
203.2 MM

SUB FOR: STOUGHTON 04-22163 FITS: 102-3/8" CONTAINERS
MATERIAL: CAST STEEL FINISH: SELF-COLOR WEIGHT: 28.7 LBS / 13.02 Kg

MODEL 6202-5041-E
TOP INTERMEDIATE
I.D. 4-7/8"
Ø124 MM w/ ISO standard 89" (c/c) Lift,
non-handed
2-1/2"
63.5 MM

6-11/16"
9-13/16"
169.9 MM 249.2 MM

2"
9/32"
50.8 MM 9-13/16" 7.1 MM
249.2 MM
6202
4-5/8" 9/16"
3-1/8"
79.4 MM 117.5 MM 14.5 MM
2"
R50.8 MM
8" 6"
203.2 MM 152.4 MM

SUB FOR: STOUGHTON 04-19115 FITS: 53' x 102-3/8" CONTAINERS w/ 89" (c/c) LIFT
MATERIAL: CAST STEEL FINISH: SELF-COLOR WEIGHT: 30.9 LBS / 14 Kg

904-696-0010
E-mail: sales@buffersusa.com
6202-11 1/29/20
