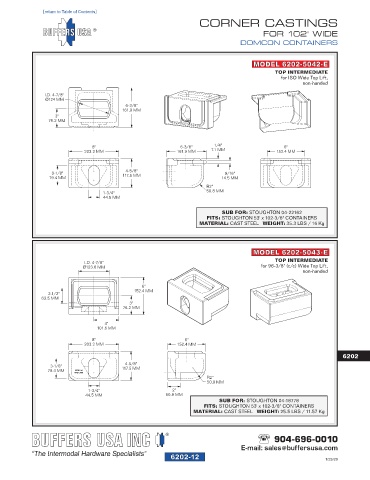

Page 331 - Buffers USA 2024 Container Hardware Catalog FlipBook

6202-12
[return to Table of Contents]
CORNER CASTINGS
FOR 102" WIDE
DOMCON CONTAINERS

MODEL 6202-5042-E
TOP INTERMEDIATE
for ISO Wide Top Lift,
non-handed

I.D. 4-7/8"
Ø124 MM
6-3/8"
161.9 MM
3"
76.2 MM

8" 6-3/8" 1/4" 6"
203.2 MM 161.9 MM 7.1 MM 152.4 MM

4-5/8"
3-1/8" 9/16"
79.4 MM 117.5 MM 14.5 MM
R2"
1-3/4" 50.8 MM
44.5 MM

SUB FOR: STOUGHTON 04-22162
FITS: STOUGHTON 53' x 102-3/8" CONTAINERS
MATERIAL: CAST STEEL WEIGHT: 35.3 LBS / 16 Kg

MODEL 6202-5043-E
TOP INTERMEDIATE
I.D. 4-7/8"
Ø123.8 MM for 96-3/8" (c/c) Wide Top Lift,
non-handed
6"
152.4 MM
2-1/2"
63.5 MM
3"
76.2 MM

4"
101.6 MM

8" 6"
203.2 MM 152.4 MM
6202
4-5/8"
3-1/8"
79.4 MM 117.5 MM
R2"
50.8 MM
1-3/4" 2"
44.5 MM 50.8 MM
SUB FOR: STOUGHTON 04-18778
FITS: STOUGHTON 53' x 102-3/8" CONTAINERS
MATERIAL: CAST STEEL WEIGHT: 25.5 LBS / 11.57 Kg

904-696-0010
E-mail: sales@buffersusa.com
6202-12 1/29/20
