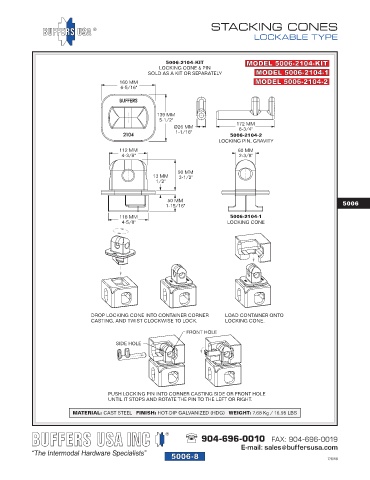

STACKING CONES
®
LOCKABLE TYPE

5006-2104-KIT MODEL 5006-2104-KIT
LOCKING CONE & PIN
SOLD AS A KIT OR SEPARATELY MODEL 5006-2104-1
160 MM MODEL 5006-2104-2
6-5/16"

139 MM
5-1/2"
Ø26 MM 172 MM
6-3/4"
1-1/16"
5006-2104-2
LOCKING PIN, GRAVITY
112 MM 60 MM
4-3/8" 2-3/8"

90 MM
13 MM 3-1/2"
1/2"

50 MM
1-15/16" 5006
118 MM 5006-2104-1
4-5/8" LOCKING CONE

DROP LOCKING CONE INTO CONTAINER CORNER LOAD CONTAINER ONTO
CASTING, AND TWIST CLOCKWISE TO LOCK. LOCKING CONE.
FRONT HOLE
SIDE HOLE

PUSH LOCKING PIN INTO CORNER CASTING SIDE OR FRONT HOLE
UNTIL IT STOPS AND ROTATE THE PIN TO THE LEFT OR RIGHT.
MATERIAL: CAST STEEL FINISH: HOT-DIP GALVANIZED (HDG) WEIGHT: 7.68 Kg / 16.95 LBS

®
