P. 119
5006-12

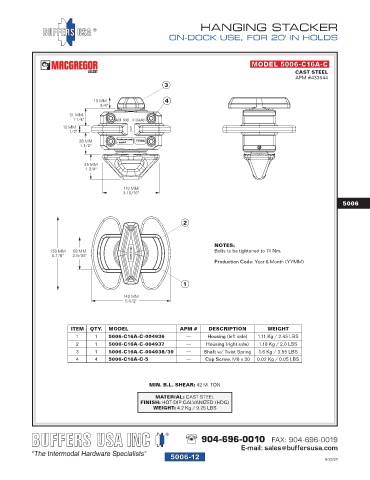

HANGING STACKER
ON-DOCK USE, FOR 20' IN HOLDS
MODEL 5006-C16A-C
CAST STEEL
APM #433644
3
19 MM 4
3/4"
31 MM
1-1/4"
12 MM
1/2"
38 MM
1-1/2"
45 MM
1-3/4"
110 MM
3-15/16"
5006
2
NOTES:
130 MM 58 MM Bolts to be tightened to 74 Nm.
5-1/8" 2-9/32"
Production Code: Year & Month (YYMM)
1
140 MM
5-1/2"
ITEM QTY. MODEL APM # DESCRIPTION WEIGHT
1 1 5006-C16A-C-004936 — Housing (left side) 1.11 Kg / 2.45 LBS
2 1 5006-C16A-C-004937 — Housing (right side) 1.18 Kg / 2.6 LBS
3 1 5006-C16A-C-004938/39 — Shaft w/ Twist Spring 1.6 Kg / 3.55 LBS
4 4 5006-C16A-C-5 — Cap Screw, M8 x 30 0.02 Kg / 0.05 LBS
MIN. B.L. SHEAR: 42 M. TON
MATERIAL: CAST STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 4.2 Kg / 9.25 LBS
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
5006-12 8/23/21
