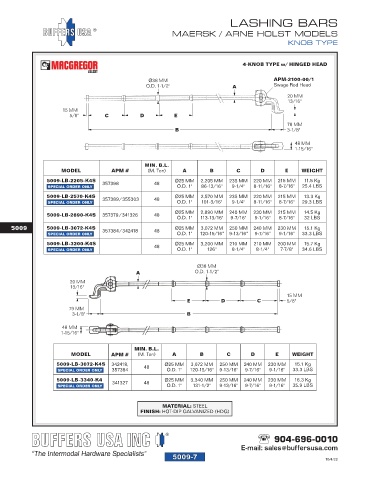

LASHING BARS
MAERSK / ARNE HOLST MODELS
KNOB TYPE

4-KNOB TYPE w/ HINGED HEAD

Ø38 MM APM-2100-00/1
O.D. 1-1/2" A Swage Rod Head
20 MM
13/16"
15 MM
5/8" C D E
78 MM
B 3-1/8"

48 MM
1-15/16"

MIN. B.L.
MODEL APM # (M. Ton) A B C D E WEIGHT
5009-LB-2205-K4S 357398 48 Ø25 MM 2,205 MM 235 MM 220 MM 215 MM 11.5 Kg
SPECIAL ORDER ONLY O.D. 1" 86-13/16" 9-1/4" 8-11/16" 8-7/16" 25.4 LBS
5009-LB-2570-K4S 357389/355303 48 Ø25 MM 2,570 MM 235 MM 220 MM 215 MM 13.3 Kg
SPECIAL ORDER ONLY O.D. 1" 101-3/16" 9-1/4" 8-11/16" 8-7/16" 29.3 LBS
Ø25 MM 2,890 MM 240 MM 230 MM 215 MM 14.5 Kg
5009-LB-2890-K4S 357379/341326 48
O.D. 1" 113-13/16" 9-7/16" 9-1/16" 8-7/16" 32 LBS
5009 5009-LB-3072-K4S 357384/342418 48 Ø25 MM 3,072 MM 250 MM 240 MM 230 MM 15.1 Kg
SPECIAL ORDER ONLY O.D. 1" 120-15/16" 9-13/16" 9-7/16" 9-1/16" 33.3 LBS
5009-LB-3200-K4S 48 Ø25 MM 3,200 MM 210 MM 210 MM 200 MM 15.7 Kg
SPECIAL ORDER ONLY O.D. 1" 126" 8-1/4" 8-1/4" 7-7/8" 34.6 LBS

Ø38 MM
A O.D. 1-1/2"
20 MM
13/16"
15 MM
E D C 5/8"
79 MM
3-1/8" B

48 MM
1-15/16"

MIN. B.L.
MODEL APM # (M. Ton) A B C D E WEIGHT
5009-LB-3072-K4S 342418, 48 Ø25 MM 3,072 MM 250 MM 240 MM 230 MM 15.1 Kg
SPECIAL ORDER ONLY 357384 O.D. 1" 120-15/16" 9-13/16" 9-7/16" 9-1/16" 33.3 LBS
5009-LB-3340-K4 341327 48 Ø25 MM 3,340 MM 250 MM 240 MM 230 MM 16.3 Kg
SPECIAL ORDER ONLY O.D. 1" 131-1/2" 9-13/16" 9-7/16" 9-1/16" 35.9 LBS

MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
