5001-03

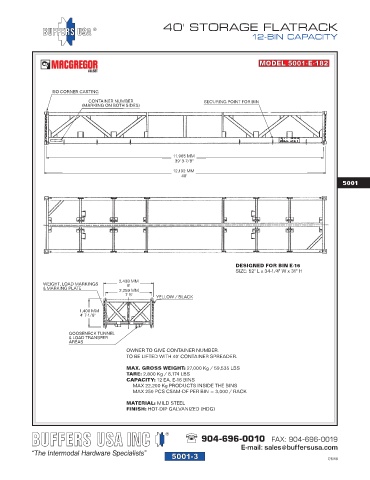

40' STORAGE FLATRACK
®
12-BIN CAPACITY

MODEL 5001-E-182

ISO CORNER CASTING
CONTAINER NUMBER SECURING POINT FOR BIN
(MARKING ON BOTH SIDES)

11,985 MM
39' 3-7/8"
12,192 MM
40'
5001

DESIGNED FOR BIN E-16
SIZE: 52" L x 34-1/4" W x 31" H
2,438 MM
WEIGHT, LOAD MARKINGS 8'
& MARKING PLATE 2,259 MM
7' 5" YELLOW / BLACK

1,400 MM
4' 7-1/8"

GOOSENECK TUNNEL
& LOAD TRANSFER
AREAS
OWNER TO GIVE CONTAINER NUMBER.
TO BE LIFTED WITH 40' CONTAINER SPREADER.
MAX. GROSS WEIGHT: 27,000 Kg / 59,535 LBS
TARE: 2,800 Kg / 6,174 LBS
CAPACITY: 12 EA. E-16 BINS
MAX 22,200 Kg PRODUCTS INSIDE THE BINS
MAX 250 PCS C5AM-DF PER BIN = 3,000 / RACK
MATERIAL: MILD STEEL
FINISH: HOT-DIP GALVANIZED (HDG)

®
