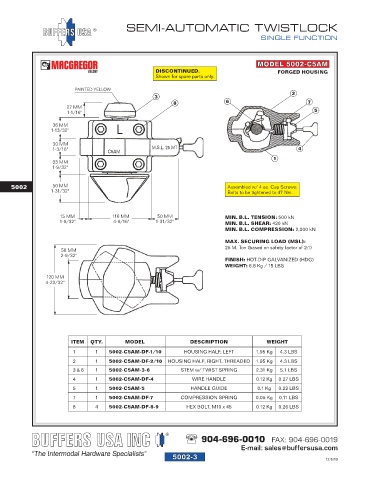

Page 76 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

5002-03

SEMI-AUTOMATIC TWISTLOCK
®
SINGLE FUNCTION

MODEL 5002-C5AM
DISCONTINUED; FORGED HOUSING
Shown for spare parts only.

PAINTED YELLOW 2
3
8 6 7
27 MM
1-1/16" 5
36 MM
1-13/32" L

30 MM
1-3/16" C5AM M.S.L. 25 MT 4
1
33 MM
1-9/32"

5002 50 MM Assembled w/ 4 ea. Cap Screws;
1-31/32" Bolts to be tightened to 47 Nm.

15 MM 116 MM 50 MM MIN. B.L. TENSION: 500 kN
1-9/32" 4-9/16" 1-31/32" MIN. B.L. SHEAR: 420 kN
MIN. B.L. COMPRESSION: 2,000 kN
MAX. SECURING LOAD (MSL):
25 M. Ton (based on safety factor of 2:1)
58 MM
2-9/32"
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 6.8 Kg / 15 LBS
120 MM
4-23/32"

ITEM QTY. MODEL DESCRIPTION WEIGHT
1 1 5002-C5AM-DF-1/10 HOUSING HALF, LEFT 1.95 Kg 4.3 LBS
2 1 5002-C5AM-DF-2/10 HOUSING HALF, RIGHT, THREADED 1.95 Kg 4.3 LBS
3 & 6 1 5002-C5AM-3-6 STEM w/ TWIST SPRING 2.31 Kg 5.1 LBS
4 1 5002-C5AM-DF-4 WIRE HANDLE 0.12 Kg 0.27 LBS
5 1 5002-C5AM-5 HANDLE GUIDE 0.1 Kg 0.22 LBS
7 1 5002-C5AM-DF-7 COMPRESSION SPRING 0.05 Kg 0.11 LBS
8 4 5002-C5AM-DF-8-9 HEX BOLT, M10 x 45 0.12 Kg 0.26 LBS

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
5002-3 12/5/19
