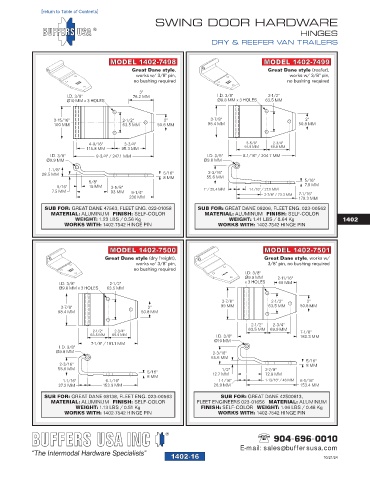

Page 331 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1402-16
[return to Table of Contents]
SWING DOOR HARDWARE

HINGES
DRY & REEFER VAN TRAILERS

MODEL 1402-7498 MODEL 1402-7499
Great Dane style, Great Dane style (reefer),
works w/ 3/8" pin, works w/ 3/8" pin,
no bushing required no bushing required
3"
I.D. 3/8" 76.2 MM I.D. 3/8" 2-1/2"
Ø10 MM x 3 HOLES Ø9.8 MM x 3 HOLES 63.5 MM

3-15/16" 2-1/2" 2" 3-7/8" 2"
100 MM 63.5 MM 50.8 MM 98.4 MM 50.8 MM

4-9/16" 3-3/4" 3-5/8" 2-3/4"
115.8 MM 95.3 MM 91.9 MM 69.9 MM
I.D. 3/8" 9-3/4" / 247.1 MM I.D. 3/8" 8-1/16" / 204.7 MM
Ø9.9 MM Ø9.8 MM
1-1/8"
28.5 MM 5/16" 2-3/16"
8 MM 55.6 MM
5/8" 5/16"
5/16" 15 MM 3-5/8" 7.9 MM
7.5 MM 93 MM 9-1/4" 1" / 25.4 MM 1-1/16" / 27.1 MM 7-1/16"
2-7/8" / 73.3 MM
236 MM 179.3 MM
SUB FOR: GREAT DANE 47563, FLEET ENG. 022-01058 SUB FOR: GREAT DANE 08206, FLEET ENG. 023-00562
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 1.23 LBS / 0.56 Kg WEIGHT: 1.41 LBS / 0.64 Kg 1402
WORKS WITH: 1402-7542 HINGE PIN WORKS WITH: 1402-7542 HINGE PIN

MODEL 1402-7500 MODEL 1402-7501
Great Dane style (dry freight), Great Dane style, works w/
works w/ 3/8" pin, 3/8" pin, no bushing required
no bushing required
I.D. 3/8"
Ø9.9 MM 2-11/16"
I.D. 3/8" 2-1/2" x 3 HOLES 69 MM
Ø9.8 MM x 3 HOLES 63.5 MM

3-7/8" 2-1/2" 2"
3-7/8" 2" 99 MM 63.5 MM 50.8 MM
98.4 MM 50.8 MM
2-1/2" 2-3/4"
2-1/2" 2-3/4" 63.5 MM 69.9 MM 7-1/8"
63.5 MM 69.9 MM I.D. 3/8" 180.3 MM
Ø10 MM
7-1/8" / 181.1 MM
I.D. 3/8"
Ø9.8 MM 2-3/16"
55.6 MM
5/16"
2-3/16" 8 MM
55.6 MM 1/2" 2-7/8"
5/16" 12.7 MM 72.9 MM
8 MM
1-1/16" 6-1/16" 1-1/16" 1-13/16" / 46 MM 6-1/16"
27.2 MM 153.9 MM 26.9 MM 153.4 MM
SUB FOR: GREAT DANE 08138, FLEET ENG. 023-00563 SUB FOR: GREAT DANE 42500813,
MATERIAL: ALUMINUM FINISH: SELF-COLOR FLEET ENGINEERS 023-01656 MATERIAL: ALUMINUM
WEIGHT: 1.13 LBS / 0.51 Kg FINISH: SELF-COLOR WEIGHT: 1.06 LBS / 0.48 Kg
WORKS WITH: 1402-7542 HINGE PIN WORKS WITH: 1402-7542 HINGE PIN

904-696-0010

E-mail: sales@buffersusa.com
1402-16 10/21/24
