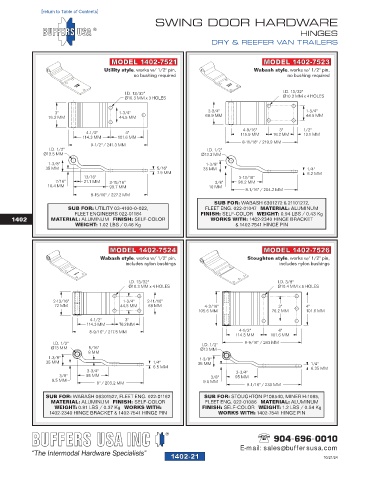

SWING DOOR HARDWARE

HINGES
DRY & REEFER VAN TRAILERS

MODEL 1402-7521 MODEL 1402-7523
Utility style, works w/ 1/2" pin, Wabash style, works w/ 1/2" pin,
no bushing required no bushing required

I.D. 13/32" I.D. 13/32"
Ø10.3 MM x 3 HOLES Ø10.3 MM x 4 HOLES

3" 1-3/4" 2-3/4" 1-3/4"
76.2 MM 44.5 MM 69.9 MM 44.5 MM
4-9/16" 3" 1/2"
4-1/2" 4" 115.9 MM 76.2 MM 12.1 MM
114.3 MM 101.6 MM
8-11/16" / 219.9 MM
9-1/2" / 241.3 MM
I.D. 1/2" I.D. 1/2"
Ø13.5 MM Ø13.2 MM
1-3/8" 1-3/8"
35 MM 5/16" 35 MM 1/4"
7.9 MM 6.2 MM
13/16" 3-13/16"
7/16" 21.1 MM 3-15/16" 3/8" 96.2 MM
10.4 MM 99.7 MM 10 MM
8-1/16" / 204.2 MM
8-15/16" / 227.2 MM
SUB FOR: WABASH 6301272 & 21101272,
SUB FOR: UTILITY 03-4100-0-022, FLEET ENG. 022-01047 MATERIAL: ALUMINUM
FLEET ENGINEERS 022-01184 FINISH: SELF-COLOR WEIGHT: 0.94 LBS / 0.43 Kg
1402 MATERIAL: ALUMINUM FINISH: SELF-COLOR WORKS WITH: 1402-2340 HINGE BRACKET
WEIGHT: 1.02 LBS / 0.46 Kg & 1402-7541 HINGE PIN

MODEL 1402-7524 MODEL 1402-7526
Wabash style, works w/ 1/2" pin, Stoughton style, works w/ 1/2" pin,
includes nylon bushings includes nylon bushings

I.D. 13/32" I.D. 3/8"
Ø10.3 MM x 4 HOLES Ø10.4 MM x 5 HOLES

2-13/16" 1-3/4" 2-11/16"
72 MM 44.5 MM 68 MM 4-3/16" 3" 4"
105.6 MM 76.2 MM 101.6 MM
4-1/2" 3"
114.3 MM 76.2 MM
8-9/16" / 217.5 MM 4-1/2" 4"
114.3 MM 101.6 MM
I.D. 1/2" I.D. 1/2" 9-9/16" / 243 MM
Ø13 MM 5/16" Ø13 MM
8 MM
1-3/8" 1-3/8"
35 MM 1/4" 35 MM 1/4"
6.5 MM 6.35 MM
3-3/4" 3-3/4"
3/8" 95 MM 3/8" 95 MM
9.5 MM 9.5 MM
8" / 203.2 MM 9-1/16" / 230 MM
SUB FOR: WABASH 06301527, FLEET ENG. 022-01182 SUB FOR: STOUGHTON P108540, MINER H-1085,
MATERIAL: ALUMINUM FINISH: SELF-COLOR FLEET ENG. 022-01086 MATERIAL: ALUMINUM
WEIGHT: 0.81 LBS / 0.37 Kg WORKS WITH: FINISH: SELF-COLOR WEIGHT: 1.2 LBS / 0.54 Kg
1402-2340 HINGE BRACKET & 1402-7541 HINGE PIN WORKS WITH: 1402-7541 HINGE PIN
