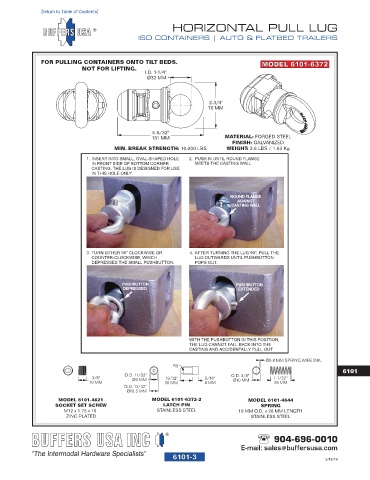

HORIZONTAL PULL LUG

ISO CONTAINERS | AUTO & FLATBED TRAILERS

FOR PULLING CONTAINERS ONTO TILT BEDS. MODEL 6101-6372
NOT FOR LIFTING.
I.D. 1-1/4"
Ø32 MM

2-3/4"
70 MM

5-5/32"
131 MM MATERIAL: FORGED STEEL
FINISH: GALVANIZED
MIN. BREAK STRENGTH: 10,000 LBS WEIGHT: 3.6 LBS / 1.63 Kg
1. INSERT INTO SMALL, OVAL-SHAPED HOLE 2. PUSH IN UNTIL ROUND FLANGE
IN FRONT SIDE OF BOTTOM CORNER MEETS THE CASTING WALL.
CASTING. THE LUG IS DESIGNED FOR USE
IN THIS HOLE ONLY.

ROUND FLANGE
AGAINST
CASTING WALL

3. TURN EITHER 90° CLOCKWISE OR 4. AFTER TURNING THE LUG 90°, PULL THE
COUNTER-CLOCKWISE, WHICH LUG OUTWARDS UNTIL PUSHBUTTON
DEPRESSES THE SMALL PUSHBUTTON. POPS OUT.

PUSHBUTTON PUSHBUTTON
DEPRESSED EXTENDED

WITH THE PUSHBUTTON IN THIS POSITION,
THE LUG CANNOT FALL BACK INTO THE
CASTING AND ACCIDENTALLY PULL OUT.

Ø0.8 MM SPRING WIRE DIA.
R3
6101
O.D. 11/32" O.D. 3/8"
3/8" Ø9 MM 19/32" 5/16" 1-1/32"
10 MM 15 MM 8 MM Ø10 MM 26 MM
O.D. 13/32"
Ø10.5 MM
MODEL 6101-4621 MODEL 6101-6372-2 MODEL 6101-4644
SOCKET SET SCREW LATCH PIN SPRING
M12 x 1.75 x 10 STAINLESS STEEL 10 MM O.D. x 26 MM LENGTH
ZINC-PLATED STAINLESS STEEL
