P. 442
6109-01
[return to Table of Contents]
CHASSIS / TRAILER STAND
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

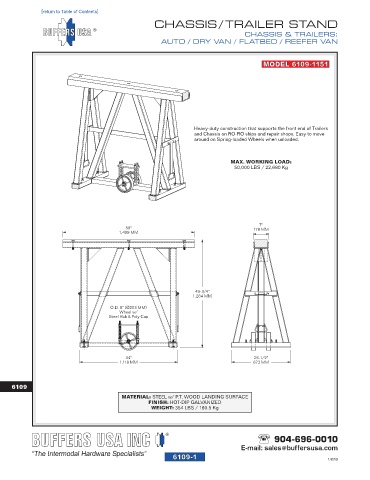

MODEL 6109-1151
Heavy-duty construction that supports the front end of Trailers
and Chassis on RO-RO ships and repair shops. Easy to move
around on Spring-loaded Wheels when unloaded.
MAX. WORKING LOAD:
50,000 LBS / 22,680 Kg
7"
59" 178 MM
1,499 MM
49-3/4"
1,264 MM
O.D. 8" (Ø203 MM)
Wheel w/
Steel Hub & Poly Cap
44" 26-1/2"
1,118 MM 673 MM
6109
MATERIAL: STEEL w/ P.T. WOOD LANDING SURFACE
FINISH: HOT-DIP GALVANIZED
WEIGHT: 354 LBS / 160.5 Kg
904-696-0010
E-mail: sales@buffersusa.com
6109-1 1/8/19
