4003-01
[return to Table of Contents]

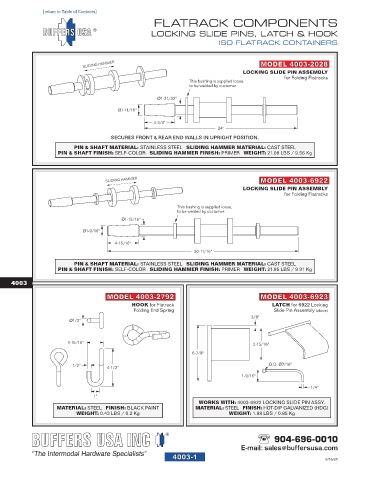

FLATRACK COMPONENTS
LOCKING SLIDE PINS, LATCH & HOOK
ISO FLATRACK CONTAINERS

SLIDING HAMMER MODEL 4003-2028
LOCKING SLIDE PIN ASSEMBLY
for Folding Flatracks
This bushing is supplied loose,
to be welded by customer.

Ø1-31/32"
Ø1-11/16"

4-3/4"
24"
SECURES FRONT & REAR END WALLS IN UPRIGHT POSITION.
PIN & SHAFT MATERIAL: STAINLESS STEEL SLIDING HAMMER MATERIAL: CAST STEEL
PIN & SHAFT FINISH: SELF-COLOR SLIDING HAMMER FINISH: PRIMER WEIGHT: 21.08 LBS / 9.56 Kg

SLIDING HAMMER MODEL 4003-6922
LOCKING SLIDE PIN ASSEMBLY
for Folding Flatracks

This bushing is supplied loose,
to be welded by customer.
Ø1-15/16"
Ø1-9/16"

4-15/16"
30-11/16"

PIN & SHAFT MATERIAL: STAINLESS STEEL SLIDING HAMMER MATERIAL: CAST STEEL
PIN & SHAFT FINISH: SELF-COLOR SLIDING HAMMER FINISH: PRIMER WEIGHT: 21.85 LBS / 9.91 Kg

4003
MODEL 4003-2792 MODEL 4003-6923
HOOK for Flatrack LATCH for 6922 Locking
Folding End Spring Slide Pin Assembly (above)
3/8"
Ø1/2"

1-15/16" 3-15/16"
6-7/8"

1/2" O.D. Ø7/16"
4-1/2"
1-9/16"
1/4"
1"
WORKS WITH: 4003-6922 LOCKING SLIDE PIN ASSY.
MATERIAL: STEEL FINISH: BLACK PAINT MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 0.43 LBS / 0.2 Kg WEIGHT: 1.88 LBS / 0.85 Kg

904-696-0010
E-mail: sales@buffersusa.com
4003-1 6/16/21
