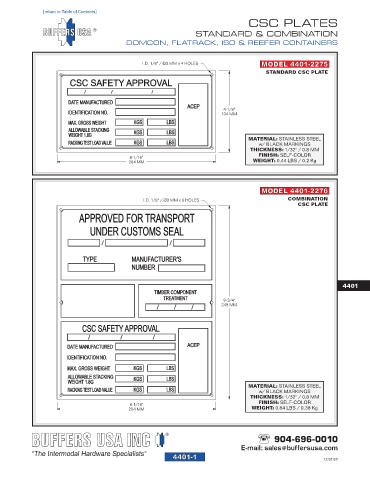

Page 281 - Buffers USA 2024 Container Hardware Catalog FlipBook

4401-01
[return to Table of Contents]
CSC PLATES
STANDARD & COMBINATION
DOMCON, FLATRACK, ISO & REEFER CONTAINERS

I.D. 1/8" / Ø3 MM x 4 HOLES MODEL 4401-2275
STANDARD CSC PLATE
CSC SAFETY APPROVAL

DATE MANUFACTURED
ACEP
4-1/8"
IDENTIFICATION NO. 104 MM
MAX. GROSS WEIGHT KGS LBS
ALLOWABLE STACKING KGS LBS
WEIGHT 1.8G
RACKING TEST LOAD VALUE KGS LBS MATERIAL: STAINLESS STEEL
w/ BLACK MARKINGS
THICKNESS: 1/32" / 0.8 MM
8-1/16" FINISH: SELF-COLOR
204 MM WEIGHT: 0.44 LBS / 0.2 Kg

MODEL 4401-2276

I.D. 1/8" / Ø3 MM x 6 HOLES COMBINATION
CSC PLATE
APPROVED FOR TRANSPORT

UNDER CUSTOMS SEAL

TYPE MANUFACTURER'S
NUMBER

4401
TIMBER COMPONENT
TREATMENT 9-3/4"
248 MM

CSC SAFETY APPROVAL

DATE MANUFACTURED ACEP
IDENTIFICATION NO.
MAX. GROSS WEIGHT KGS LBS
ALLOWABLE STACKING KGS LBS
WEIGHT 1.8G
RACKING TEST LOAD VALUE KGS LBS MATERIAL: STAINLESS STEEL
w/ BLACK MARKINGS
THICKNESS: 1/32" / 0.8 MM
8-1/16" FINISH: SELF-COLOR
204 MM WEIGHT: 0.84 LBS / 0.38 Kg

904-696-0010
E-mail: sales@buffersusa.com
4401-1 12/21/21
