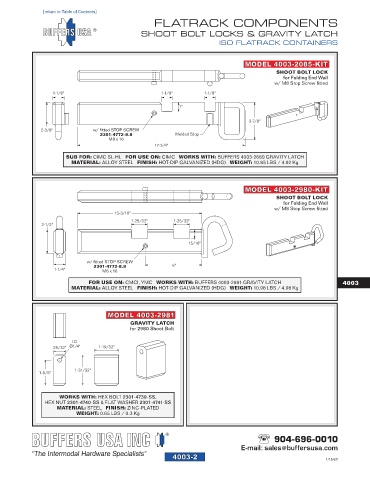

FLATRACK COMPONENTS
SHOOT BOLT LOCKS & GRAVITY LATCH
ISO FLATRACK CONTAINERS

MODEL 4003-2085-KIT
SHOOT BOLT LOCK
for Folding End Wall
w/ M8 Stop Screw fitted

1-1/8" 1-1/8" 1-1/8"
1"

3-7/8"
2-3/8" w/ fitted STOP SCREW
2301-4772-8.8 Welded Stop
M8 x 16
17-3/4"

SUB FOR: CIMC SL-HL FOR USE ON: CIMC WORKS WITH: BUFFERS 4003-2660 GRAVITY LATCH
MATERIAL: ALLOY STEEL FINISH: HOT-DIP GALVANIZED (HDG) WEIGHT: 10.85 LBS / 4.92 Kg

MODEL 4003-2980-KIT
SHOOT BOLT LOCK
for Folding End Wall
w/ M8 Stop Screw fitted
13-3/16"
1-25/32" 1-25/32"
2-1/2"

15/16"

w/ fitted STOP SCREW
2301-4772-8.8 6"
1-1/4" M8 x 16

FOR USE ON: CMCI, YMC WORKS WITH: BUFFERS 4003-2981 GRAVITY LATCH 4003
MATERIAL: ALLOY STEEL FINISH: HOT-DIP GALVANIZED (HDG) WEIGHT: 10.98 LBS / 4.98 Kg

MODEL 4003-2981
GRAVITY LATCH
for 2980 Shoot Bolt

I.D.
25/32" Ø1/4" 1-19/32"

1-31/32"
1-5/8"

WORKS WITH: HEX BOLT 2301-4739-SS,
HEX NUT 2301-4740-SS & FLAT WASHER 2301-4741-SS
MATERIAL: STEEL FINISH: ZINC-PLATED
WEIGHT: 0.65 LBS / 0.3 Kg
