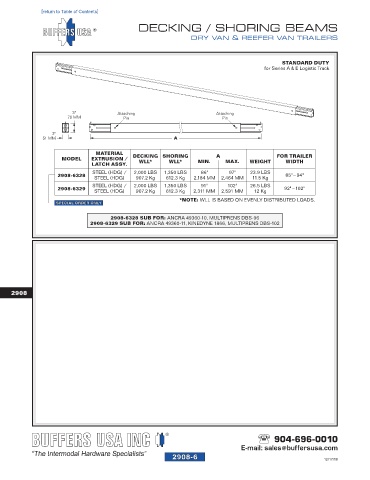

Page 410 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

2908-06
[return to Table of Contents]
DECKING / SHORING BEAMS

DRY VAN & REEFER VAN TRAILERS

STANDARD DUTY
for Series A & E Logistic Track

3" Attaching Attaching
76 MM Pin Pin

2"
51 MM A

MATERIAL DECKING SHORING A FOR TRAILER
MODEL EXTRUSION / WLL* WLL* MIN. MAX. WEIGHT WIDTH
LATCH ASSY.
STEEL (HDG) / 2,000 LBS 1,350 LBS 86" 97" 23.9 LBS
2908-6328 STEEL (HDG) 907.2 Kg 612.3 Kg 2,184 MM 2,464 MM 11.5 Kg 85" – 94"
STEEL (HDG) / 2,000 LBS 1,350 LBS 91" 102" 26.5 LBS
2908-6329 STEEL (HDG) 907.2 Kg 612.3 Kg 2,311 MM 2,591 MM 12 Kg 92" –102"
*NOTE: WLL IS BASED ON EVENLY DISTRIBUTED LOADS.
SPECIAL ORDER ONLY
2908-6328 SUB FOR: ANCRA 49360-10, MULTIPRENS DBS-96
2908-6329 SUB FOR: ANCRA 49360-11, KINEDYNE 1866, MULTIPRENS DBS-102

2908

904-696-0010
E-mail: sales@buffersusa.com
2908-6 12/17/19
