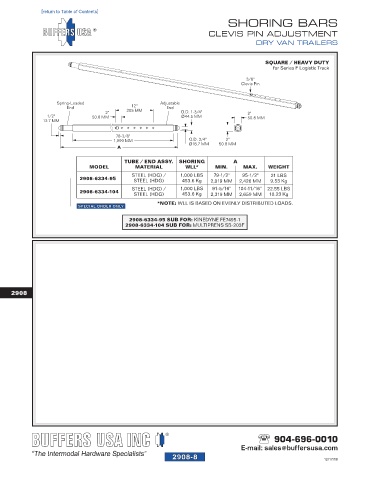

SHORING BARS
CLEVIS PIN ADJUSTMENT
DRY VAN TRAILERS

SQUARE / HEAVY DUTY
for Series F Logistic Track

3/8"
Clevis Pin

Spring-Loaded Adjustable
12"
End 305 MM End
2" O.D. 1-3/4" 2"
1/2" 50.8 MM Ø44.5 MM 50.8 MM
12.7 MM
78-3/8"
1,990 MM O.D. 3/4" 2"
Ø18.7 MM 50.8 MM
A
TUBE / END ASSY. SHORING A
MODEL MATERIAL WLL* MIN. MAX. WEIGHT
STEEL (HDG) / 1,000 LBS 79-1/2" 95-1/2" 21 LBS
2908-6334-95 STEEL (HDG) 453.6 Kg 2,019 MM 2,426 MM 9.53 Kg
STEEL (HDG) / 1,000 LBS 91-5/16" 104-11/16" 22.55 LBS
2908-6334-104 STEEL (HDG) 453.6 Kg 2,319 MM 2,659 MM 10.23 Kg
*NOTE: WLL IS BASED ON EVENLY DISTRIBUTED LOADS.
SPECIAL ORDER ONLY

2908-6334-95 SUB FOR: KINEDYNE FE7495-1
2908-6334-104 SUB FOR: MULTIPRENS SB-203F
