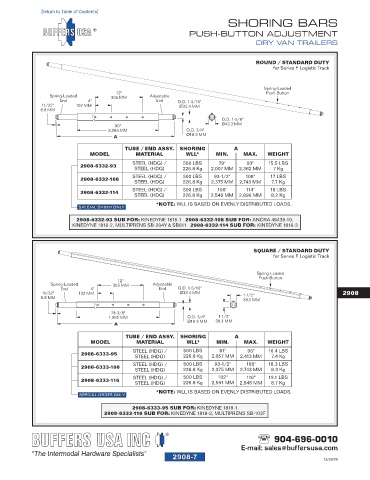

Page 411 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

2908-07
[return to Table of Contents]
SHORING BARS
PUSH-BUTTON ADJUSTMENT
DRY VAN TRAILERS

ROUND / STANDARD DUTY
for Series F Logistic Track

Spring-Loaded
12" Push-Button
Spring-Loaded 305 MM Adjustable
End 4" End O.D. 1-5/16"
11/32" 102 MM Ø33.4 MM
8.8 MM
O.D. 1-5/8"
90" Ø42.2 MM
2,286 MM O.D. 3/4"
A Ø18.3 MM
TUBE / END ASSY. SHORING A
MODEL MATERIAL WLL* MIN. MAX. WEIGHT
STEEL (HDG) / 500 LBS 79" 93" 15.5 LBS
2908-6332-93
STEEL (HDG) 226.8 Kg 2,007 MM 2,362 MM 7 Kg
STEEL (HDG) / 500 LBS 93-1/2" 108" 17 LBS
2908-6332-108
STEEL (HDG) 226.8 Kg 2,375 MM 2,743 MM 7.7 Kg
2908-6332-114 STEEL (HDG) / 500 LBS 100" 114" 18 LBS
STEEL (HDG) 226.8 Kg 2,540 MM 2,896 MM 8.2 Kg
*NOTE: WLL IS BASED ON EVENLY DISTRIBUTED LOADS.
SPECIAL ORDER ONLY
2908-6332-93 SUB FOR: KINEDYNE 1816-1 2908-6332-108 SUB FOR: ANCRA 49439-10,
KINEDYNE 1816-2, MULTIPRENS SB-204Y & SB611 2908-6332-114 SUB FOR: KINEDYNE 1816-3

SQUARE / STANDARD DUTY
for Series F Logistic Track

Spring-Loaded
Push-Button
12"
Spring-Loaded 305 MM Adjustable
End 4" End O.D. 1-5/16"
11/32" 102 MM Ø33.4 MM 1-1/2" 2908
8.8 MM
38.1 MM
78-3/8"
1,990 MM O.D. 3/4" 1-1/2"
A Ø18.3 MM 38.1 MM

TUBE / END ASSY. SHORING A
MODEL MATERIAL WLL* MIN. MAX. WEIGHT
STEEL (HDG) / 500 LBS 81" 95" 16.4 LBS
2908-6333-95 STEEL (HDG) 226.8 Kg 2,057 MM 2,413 MM 7.4 Kg
STEEL (HDG) / 500 LBS 93-1/2" 108" 18.3 LBS
2908-6333-108
STEEL (HDG) 226.8 Kg 2,375 MM 2,743 MM 8.3 Kg
2908-6333-116 STEEL (HDG) / 500 LBS 102" 116" 19.1 LBS
STEEL (HDG) 226.8 Kg 2,591 MM 2,946 MM 8.7 Kg
*NOTE: WLL IS BASED ON EVENLY DISTRIBUTED LOADS.
SPECIAL ORDER ONLY

2908-6333-95 SUB FOR: KINEDYNE 1818-1
2908-6333-116 SUB FOR: KINEDYNE 1818-3, MULTIPRENS SB-103F

904-696-0010
E-mail: sales@buffersusa.com
2908-7 12/20/19
