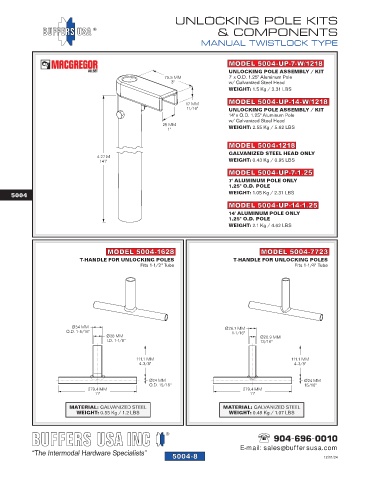

Page 100 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

5004-08
UNLOCKING POLE KITS
& COMPONENTS
®
MANUAL TWISTLOCK TYPE

MODEL 5004-UP-7-W/1218
UNLOCKING POLE ASSEMBLY / KIT
75.5 MM 7' x O.D. 1.25" Aluminum Pole
3" w/ Galvanized Steel Head
WEIGHT: 1.5 Kg / 3.31 LBS
MODEL 5004-UP-14-W/1218
17 MM
11/16" UNLOCKING POLE ASSEMBLY / KIT
14' x O.D. 1.25" Aluminum Pole
w/ Galvanized Steel Head
25 MM WEIGHT: 2.55 Kg / 5.62 LBS
1"

MODEL 5004-1218
GALVANIZED STEEL HEAD ONLY
4.27 M
141" WEIGHT: 0.43 Kg / 0.95 LBS
MODEL 5004-UP-7-1.25
7' ALUMINUM POLE ONLY
1.25" O.D. POLE
5004 WEIGHT: 1.05 Kg / 2.31 LBS
MODEL 5004-UP-14-1.25
14' ALUMINUM POLE ONLY
1.25" O.D. POLE
WEIGHT: 2.1 Kg / 4.62 LBS

MODEL 5004-1628 MODEL 5004-7723
T-HANDLE FOR UNLOCKING POLES T-HANDLE FOR UNLOCKING POLES
Fits 1-1/2" Tube Fits 1-1/4" Tube

Ø34 MM Ø26.7 MM
O.D. 1-5/16" 1-1/16"
Ø28 MM Ø20.9 MM
I.D. 1-1/8" 13/16"

111.1 MM 111.1 MM
4-3/8" 4-3/8"

Ø24 MM Ø24 MM
O.D. 15/16" 15/16"
279.4 MM 279.4 MM
11" 11"
MATERIAL: GALVANIZED STEEL MATERIAL: GALVANIZED STEEL
WEIGHT: 0.55 Kg / 1.2 LBS WEIGHT: 0.49 Kg / 1.07 LBS

904-696-0010

E-mail: sales@buffersusa.com
5004-8 12/11/24
