5005-03

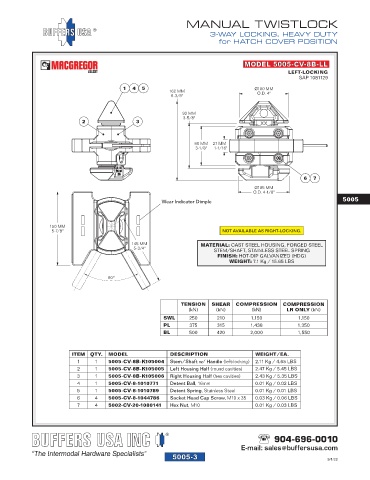

MANUAL TWISTLOCK
3-WAY LOCKING, HEAVY DUTY
for HATCH COVER POSITION

MODEL 5005-CV-8B-LL
LEFT-LOCKING
SAP 1081129

1 4 5 Ø100 MM
162 MM O.D. 4"
6-3/8"

92 MM
3-5/8"
2 3

80 MM 27 MM
3-1/8" 1-1/16"

6 7
Ø105 MM
O.D. 4-1/8"
5005
Wear Indicator Dimple

150 MM
5-7/8" NOT AVAILABLE AS RIGHT-LOCKING.

145 MM MATERIAL: CAST STEEL HOUSING, FORGED STEEL
5-3/4" STEM/SHAFT, STAINLESS STEEL SPRING
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 7.1 Kg / 15.65 LBS

60º

TENSION SHEAR COMPRESSION COMPRESSION
(kN) (kN) (kN) LR ONLY (kN)
SWL 250 210 1,150 1,150
PL 375 315 1,438 1,350
BL 500 420 2,000 1,550

ITEM QTY. MODEL DESCRIPTION WEIGHT/EA.
1 1 5005-CV-8B-K105004 Stem/Shaft w/ Handle (left-locking) 2.11 Kg / 4.65 LBS
2 1 5005-CV-8B-K105005 Left Housing Half (round cavities) 2.47 Kg / 5.45 LBS
3 1 5005-CV-8B-K105006 Right Housing Half (hex cavities) 2.43 Kg / 5.35 LBS
4 1 5005-CV-8-1010771 Detent Ball, 16mm 0.01 Kg / 0.02 LBS
5 1 5005-CV-8-1010789 Detent Spring, Stainless Steel 0.01 Kg / 0.01 LBS
6 4 5005-CV-8-1044786 Socket Head Cap Screw, M10 x 35 0.03 Kg / 0.06 LBS
7 4 5002-CV-20-1080141 Hex Nut, M10 0.01 Kg / 0.03 LBS
