Page 99 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

5004-07

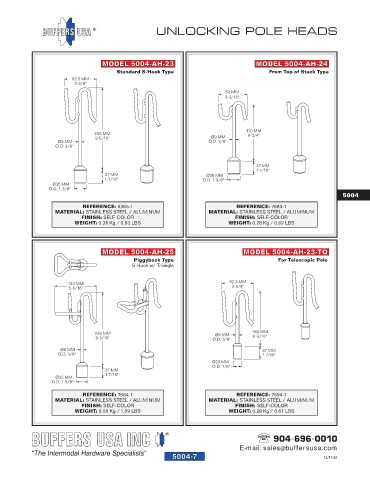

UNLOCKING POLE HEADS
®

MODEL 5004-AH-23 MODEL 5004-AH-24
Standard S-Hook Type From Top of Stack Type
92.3 MM
3-5/8"
82 MM
3-3/16"

170 MM
236 MM 6-3/4"
9-5/16" Ø9 MM
Ø9 MM O.D. 3/8"
O.D. 3/8"

37 MM
1-7/16"
37 MM Ø35 MM
1-7/16" O.D. 1-3/8"
Ø35 MM
O.D. 1-3/8"
5004
REFERENCE: 6365-1 REFERENCE: 7683-1
MATERIAL: STAINLESS STEEL / ALUMINUM MATERIAL: STAINLESS STEEL / ALUMINUM
FINISH: SELF-COLOR FINISH: SELF-COLOR
WEIGHT: 0.38 Kg / 0.83 LBS WEIGHT: 0.28 Kg / 0.62 LBS

MODEL 5004-AH-25 MODEL 5004-AH-23-TQ
Piggyback Type For Telescopic Pole
S-Hook w/ Triangle

134 MM 92.3 MM
5-5/16" 3-5/8"

236 MM Ø9 MM 160 MM
9-5/16" O.D. 3/8" 6-5/16"

Ø9 MM 37 MM
O.D. 3/8" 1-7/16"
Ø23 MM
O.D. 7/8"
37 MM
1-7/16"
Ø35 MM
O.D. 1-3/8"
REFERENCE: 7684-1 REFERENCE: 7694-1
MATERIAL: STAINLESS STEEL / ALUMINUM MATERIAL: STAINLESS STEEL / ALUMINUM
FINISH: SELF-COLOR FINISH: SELF-COLOR
WEIGHT: 0.50 Kg / 1.09 LBS WEIGHT: 0.28 Kg / 0.61 LBS

904-696-0010

E-mail: sales@buffersusa.com
5004-7 12/11/24
