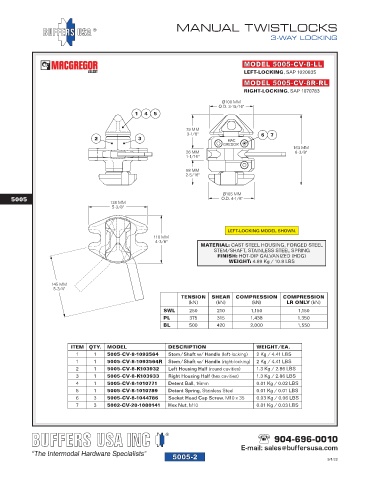

5005-02

MANUAL TWISTLOCKS

3-WAY LOCKING

MODEL 5005-CV-8-LL
LEFT-LOCKING, SAP 1020835
MODEL 5005-CV-8R-RL
RIGHT-LOCKING, SAP 1070783
Ø100 MM
O.D. 3-15/16"
1 4 5

79 MM
3-1/8" 6 7
2 3
163 MM
26 MM 6-3/8"
1-1/16"

58 MM
2-5/16"

Ø105 MM
5005 O.D. 4-1/8"
136 MM
5-3/8"

LEFT-LOCKING MODEL SHOWN.
110 MM
4-3/8"
MATERIAL: CAST STEEL HOUSING, FORGED STEEL
STEM/SHAFT, STAINLESS STEEL SPRING
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 4.89 Kg / 10.8 LBS

145 MM
5-3/4"
TENSION SHEAR COMPRESSION COMPRESSION
(kN) (kN) (kN) LR ONLY (kN)
SWL 250 210 1,150 1,150
PL 375 315 1,438 1,350
BL 500 420 2,000 1,550

ITEM QTY. MODEL DESCRIPTION WEIGHT/EA.
1 1 5005-CV-8-1093564 Stem/Shaft w/ Handle (left-locking) 2 Kg / 4.41 LBS
1 1 5005-CV-8-1093564R Stem/Shaft w/ Handle (right-locking) 2 Kg / 4.41 LBS
2 1 5005-CV-8-K103932 Left Housing Half (round cavities) 1.3 Kg / 2.86 LBS
3 1 5005-CV-8-K103933 Right Housing Half (hex cavities) 1.3 Kg / 2.86 LBS
4 1 5005-CV-8-1010771 Detent Ball, 16mm 0.01 Kg / 0.02 LBS
5 1 5005-CV-8-1010789 Detent Spring, Stainless Steel 0.01 Kg / 0.01 LBS
6 3 5005-CV-8-1044786 Socket Head Cap Screw, M10 x 35 0.03 Kg / 0.06 LBS
7 3 5002-CV-20-1080141 Hex Nut, M10 0.01 Kg / 0.03 LBS
